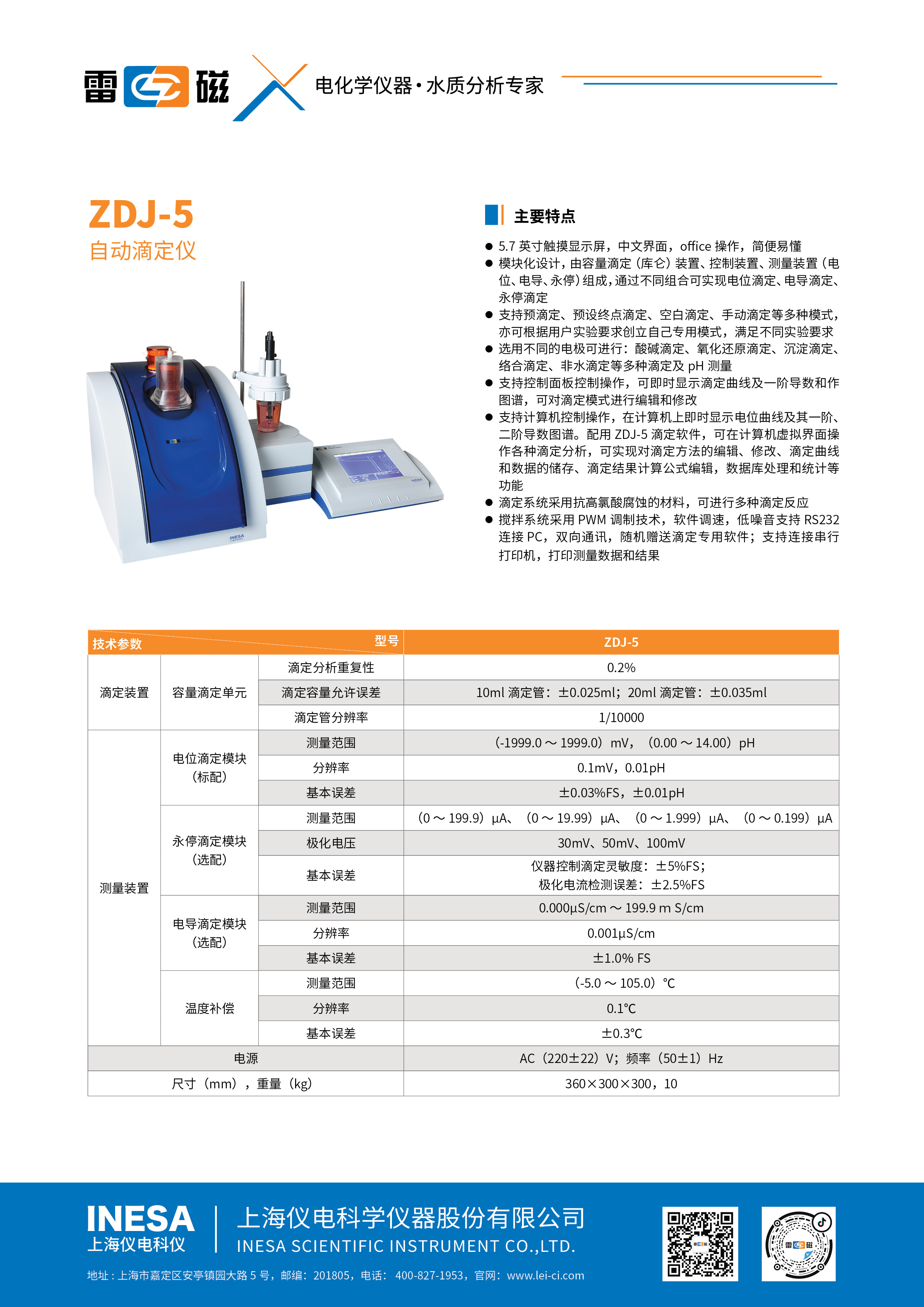

Shanghai Lei Magnetic Automatic Titrator ZDJ-5（ Standard set)_Potentiometric Titrator

【Main features】

●5.7Inch touch display, Chinese interface, office Operation, easy to understand；

●Modular design, consisting of capacity titration (Coulomb) device, control device, measurement device (potential, conductivity, permanent stop). Potential titration, conductivity titration, permanent stop titration can be achieved through different combinations.；

●Supports pretitation, preset endpoint titration, blank titration, manual titration and other modes. You can also create your own dedicated mode according to user experimental requirements to meet different experimental requirements.；

●Different electrodes can be used for: acid-base titration, redox titration, precipitation titration, complex titration, non-water titration and other titrations. pH Measurement；

●Supports control panel operation, which can instantly display the titration curve, first-order derivative and graph, and can edit and modify the titration mode.；

●Supports computer-controlled operations and instantly displays the potential curve and its first-order and second-order derivative maps on the computer. Used ZDJ-5 Titration software can operate various titration analyses in the computer virtual interface, and can realize the editing, modification of titration methods, storage of titration curves and data, editing of titration results calculation formulas, database processing and statistics.；

●The titration system uses materials that are resistant to perchloric acid corrosion and can carry out multiple titration reactions.；

●Agitating system PWM Modulation technology, software speed regulation, low noise；

●support RS232 connect PC， Two-way communication, random gift of titration software； Support connection ( TP-16 type, TP-24 Type or TP-40 ) serial printer, print measurement data and results.

【Technical parameters]

model Technical parameters			ZDJ-5
drop Certainly Pack Set	Capacity Titration unit	Titration analysis repetition	0.2%
		Allowable Error of Titration Capacity	10ml Burner: ±0.025ml；20ml Burner: ±0.035ml
		Burner resolution	10ml Burner: 1 /10000；20ml Burner: 2 /10000
		Burner infusion or Rehydration speed	（50±10）s（ When the buret is full)
Test quantity Pack Set	Potentiometric titration module （Standard)	Measurement range	（-1999.0～1999.0）mV，（0.00～14.00）pH
		Resolution	0.1mV，0.01pH
		Basic error	±0.03%FS，±0.01pH
	Permanent stop titration module （Optional)	Measurement range	（0～199.9）μA、（0～19.99）μA、（0～1.999）μA、（0～0.199）μA
		Polarization voltage	30mV、50mV、100mV
		Basic error	Instrument controls titration sensitivity: ±5%FS； Polarization current detection error: ±2.5%FS
	Conductance Titration Module （Optional)	Measurement range	0.000μS/cm ～199.9ｍS/cm
		Resolution	0.001μS/cm
		Basic error	±1.0％FS
	Temperature compensation	Measurement range	（-5.0～105.0）℃
		Resolution	0.1℃
		Basic error	±0.3℃
power supply			AC（220±22）V； Frequency (50 ±1）Hz
size( mm）， weight( kg）			360×300×300，10

ZDJ－5Standard potential packing list for automatic potential titrator

Serial number

Name and specifications

quantity

1

2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38

ZDJ-5 Capacity titration unit and potential measurement unit

ZDJ-5 Type control unit
E-201-C type pH Composite electrode
232-01Type reference electrode
213-01Type platinum electrode
216-01Silver electrode
217-01Type reference electrode
231-01type pH Glass electrode
T-818-B-6 Type temperature electrode
Drip tube (SC5.462.013)
Electrode stem (SC8.100.225)
Solution cup (SC8.219.010)
Solution cup (SC8.463.001)
Rod tool (SC5.227.004)
pH Standard buffer pH4、7、9
Burner 10 ml(SC5.125.025)
Burner 20 ml(SC5.125.026)
Stir beads
Solution cup device (SC5.109.002)
Nut 2 (SC8.940.191)
Plugged 1 (SC8.322.087)
Patch 2 (SC8.322.088)
Plug 3 (SC8.322.089)
Plug 4 (SC8.322.090)
Patch 5 (SC8.322.091)
Plug 6 (SC8.322.092)
Infusion tube (plastic ) Φ4×0.5
Plastic liquid storage bottle (500ml)
fuse Φ5×20(2A)
AF30 Touch pen
International general power cord
Control unit －Special connection cable for capacity titration unit
Control unit －Special connection line for potential measurement unit
PC machine- ZDJ-5 Special connection cable for automatic titrator
TP-40 Special connection cable for printer
Instructions for use
Product Certificate
ZDJ-5 Communication software

1tower

1tower
1branch
1branch
1branch
1branch
1branch
1branch
1branch
4root
1root
5Only
5Only
1Only
5 small packages each
1set
1set
3Only
1set
5Only
1Only
1Only
1Only
1Only
1Only
1Only
3root
1Only
2Only
1branch
1root
1root
1root
1root
1root
1Book
1share
1plate

ZDJ－5Automatic titrator (Conductivity measurement unit ) Optional conductor packing list

Serial number

Name and specifications

quantity

1

2
3
4
5
6

Conductivity measurement unit

DJS-1C Type conductive electrode (bright )
T-818-B-6 Type temperature sensor
Product Instructions (Conductivity measurement part )
ZDJ-5 Communication software
Product Certificate

1Only

1branch
1branch
1Book
1plate
1share

ZDJ－5Automatic permanent stop titrator optional permanent stop packing list

Serial number

Name and specifications

quantity

1

2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31

ZDJ-5 Capacity titration unit and permanent stop measurement unit

ZDJ-5 Type control unit
DJS-1C Type conductive electrode (bright )
Drip tube (SC5.462.013)
Electrode stem (SC8.100.225)
Solution cup (SC8.219.010)
Solution cup (SC8.463.001)
Rod tool (SC5.227.004)
Burner 10 ml(SC5.125.025)
Burner 20 ml(SC5.125.026)
Agitator (SC5.355.045)
Stir beads
Solution cup device (SC5.109.002)
Nut 2 (SC8.940.191)
Plugged 1 (SC8.322.087)
Patch 2 (SC8.322.088)
Plug 3 (SC8.322.089)
Plug 4 (SC8.322.090)
Patch 5 (SC8.322.091)
Plug 6 (SC8.322.092)
Infusion tube (plastic ) Φ4×0.5
Plastic liquid storage bottle (500ml)
fuse Φ5×20(1A)
International general power cord
Control unit －Special connection cable for capacity titration unit
Control unit －Special connection line for permanent stop measurement unit
PC machine- ZDJ-5 Special connection cable for automatic titrator
TP-40 Special connection cable for printer
Instructions for use (permanent stop titration)
Product Certificate
ZDJ-5 Communication software

1tower

1tower
1branch
4root
1root
5Only
5Only
1Only
1set
1set
1set
3Only
1set
5Only
1Only
1Only
1Only
1Only
1Only
1Only
3root
1Only
2Only
1root
1root
1root
1root
1root
1Book
1share
1plate
