Shanghai Lei Magnetic Automatic Potentiometer ZDJ-4B（ Standard set)_Potentiometric Titrator

Potentiometric Titrator

Shanghai Lei Magnetic Automatic Potentiometer ZDJ-4B（ Standard set)

Price：￥29800

WeChat

Brand：lei-ci
Model：ZDJ-4B（ Standard set)
Inventory Status：Spot promotion/please call for consultation

Contact：: Tel：+86 010-51660436
Email：dnyc_sales@163.com

Details Documentation Related

【Main features】

Dot matrix LCD display, key operation, computer Chinese software controls or controls separately； Display relevant test methods, titration curves, and measurement results in real time ；

The integrated design of valve buret pipes is convenient for replacement, effectively avoiding the mutual interference of different solutions during different titrations.；

Supports pretitation (dynamic titration), preset endpoint titration, mode titration, blank titration, manual titration and other titration modes, and supports generation of dedicated titration modes；

Supports various titration methods such as acid-base titration, redox titration, precipitation titration, complex titration, and non-water titration.； Supports the establishment, editing, copying and review of titration methods ； support pH Measurement function.

Data management function: Supports storage of 200 sets of titration results and 1 set of titration curves, comply with GLP Standardized measurement information, traceable information is more complete； Supports data deletion, review, printing or output ；

Supports two operating languages in Chinese and English； Support power outage protection function ；

support USB、RS232 connect PC， Randomly gift titration software；

Support firmware upgrade； Supported PC Connect the autosampler.

【Technical parameters]

model Technical parameters			ZDJ-4B
drop Certainly Pack Set	Capacity Titration unit	Titration analysis repetition	0.2%
		Allowable Error of Titration Capacity	10ml Burner: ±0.025ml；20ml Burner: ±0.035ml
		Burner resolution	10ml Burner: 1 /10000；20ml Burner: 2 /10000
		Burner infusion or Rehydration speed	(55±10)s（ When the buret is full)
Test quantity Pack Set	Potential titration Module	Measurement range	（-1800.0～1800.0）mV，（0.00～14.00）pH
		Resolution	0.1mV，0.01pH
		Basic error	pH：±0.01pH±1Word mV：±0.03%FS
		stability	(±0.3mV±1Word )/3h
	Temperature compensation	Measurement range	（-5.0～105.0）℃
		Resolution	0.1℃
		Basic error	±0.3℃
power supply			AC(220±22)V； frequency (50±1)Hz
size (mm)，weight (kg)			340×400×400，10

【Main functions】

model Main functions		ZDJ-4B
Titration unit	Built-in buret line	●
	Extended external buret pipes	/
	Integrated burette	●
	10ml/20 ml Optional	●
Signal unit	Potentiometric titration module	●
Screen display		Dot matrix LCD display
Computer software control		●
Titration model	Pretitration (dynamic titration)	●
	Preset end titration	●
	Constant titration	●
	Blank titration	●
	Manual titration	●
	Custom titration	●
Titration curve		●
Titration method		/
Store data		200
Data interface	RS-232	●
Data interface	USB	●
Automatic sampler		●（pass PC）
U Drive hardware upgrade		●

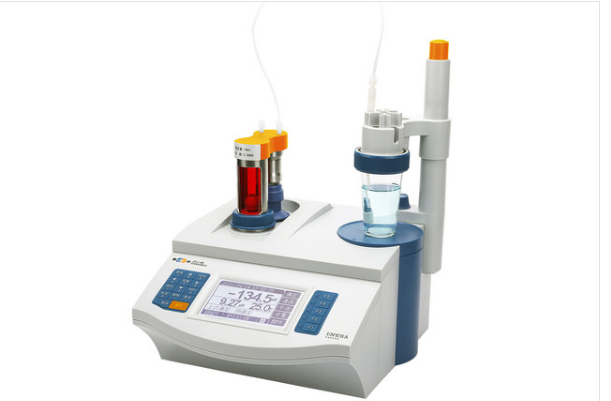

ZDJ-4B Automatic potential titrator

Serial number

Name and specifications

quantity

ZDJ－4B Automatic potential titrator

232-01Reference electrode

213-01Platinum electrode

216-01Silver electrode

217-01Reference electrode

231-01type pH Glass electrode

T-818-B-6 Type temperature electrode

Drop tube and infusion tube (Fluoroplastic )(SC5.462.023)

Solution cup (SC8.219.010)

Solution cup (SC8.463.001)

Rod tool (SC8.227.126)

Burner valve device 10 ml(SC5.461.044)

Stir beads (small)

Electrode frame device (SC5.108.022)

Infusion tube (Fluoroplastic ) Φ3.2×0.5(import )

Pipe connection nut GS-14A、B

Plastic liquid storage bottle (500ml)

fuse Φ5×20(3A)

International general power cord

TP-16 Serial printer connection

USB Communication connection

pH Buffer reagent ( pH4.01/6.86/9.18）

Product instruction manual and application examples

Product Certificate

Lei Magnetic Titration Software

1tower

1branch

1root

3Only

1indivual

1set

3Only

1set

2root

3set

1Only

2Only

1root

1set

1 book each

1share

1plate

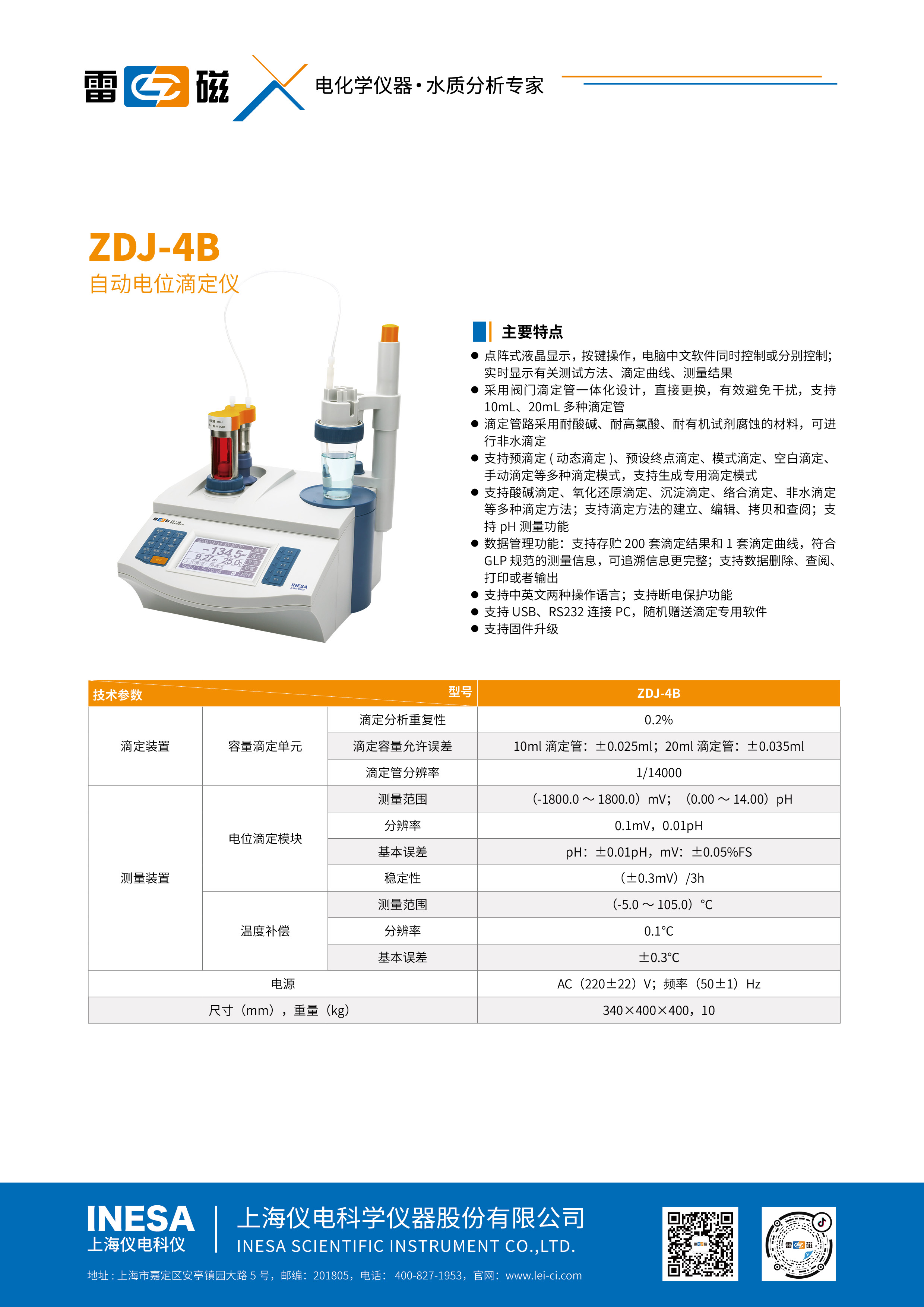

Product Brochure

User Guide

Packing List

Product Sheet

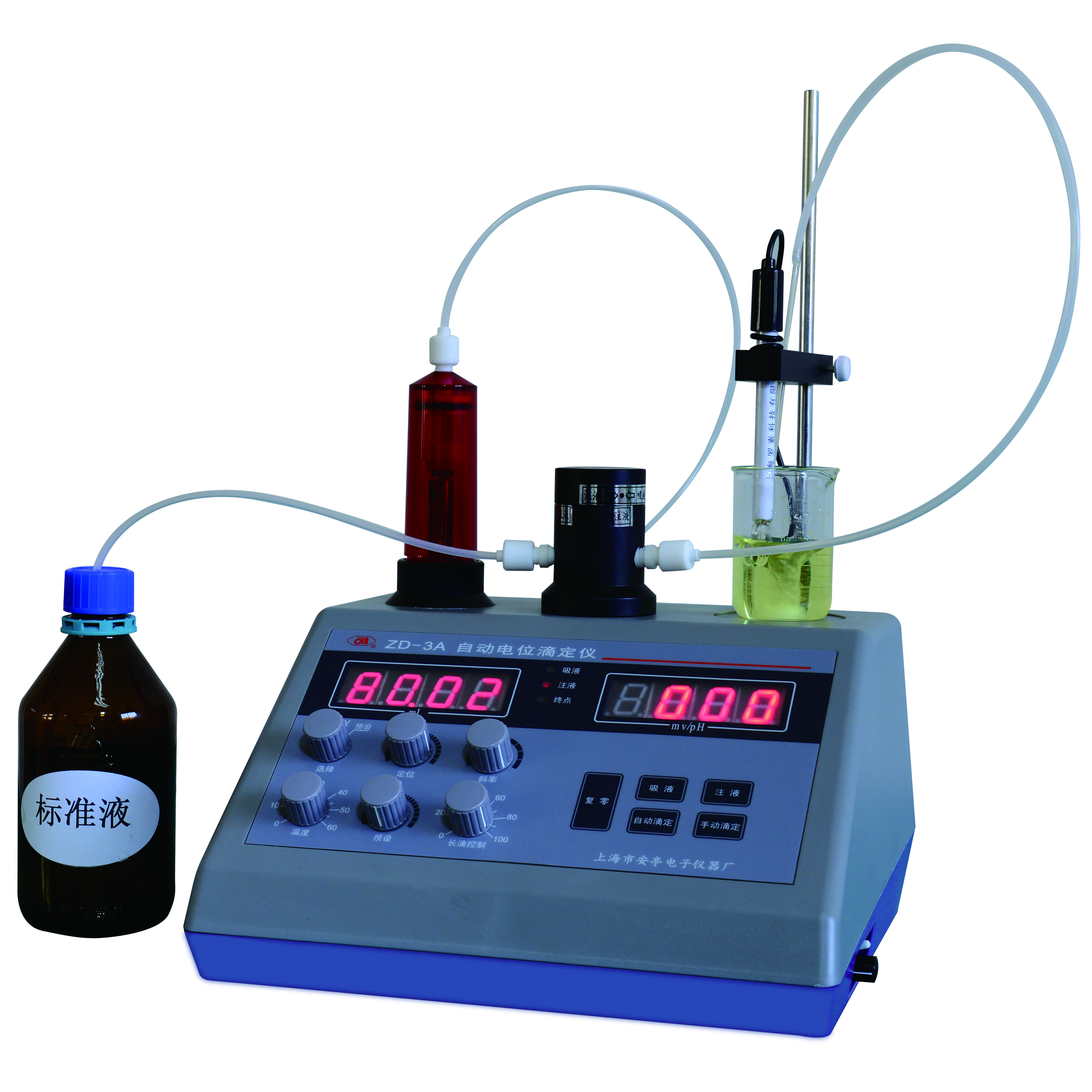

Anting Electronics ZD-3A, Automatic potentiometer
