Product/Brand

Potentiometric Titrator

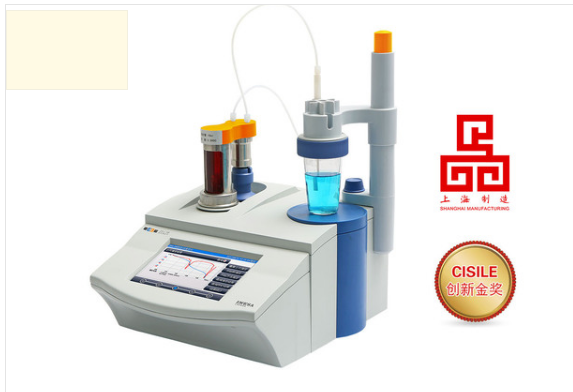

Shanghai Lei Magnetic Automatic Titrator ZDJ-5B-T(Potential, temperature titration )(Single pipe )
Price:¥55800

WeChat

Brand:lei-ci
Model:ZDJ-5B-T(Potential, temperature titration )(Single pipe )
Inventory Status:Spot promotion/please call for consultation
Contact:
Tel:+86 010-51660436
Email:dnyc_sales@163.com
Details Documentation Related

【Main features】

The instrument supports potentiometric titration and temperature titration;

7Cun color touch screen, navigation operation; Display test methods, titration curves and measurement results in real time ;

Includes a set of built-in buret pipes, which can expand the second set of buret pipes (optional, external);

Adopt the integrated design of valve buret pipes, directly replace them to effectively avoid interference, and support 10 mL、20mL Various burets;

Supports pretitation (dynamic titration), blank titration (equal titration), preset endpoint titration, constant titration, manual titration and other titration modes, and supports self-built dedicated modes;

Supports various titration methods such as acid-base titration, redox titration, precipitation titration, complex titration, and non-water titration.; Supports the establishment, editing, copying and review of titration methods ; support pH Measurement function;

Supports method management, can store 100 sets of titration methods;

Supports data management and can store 200 sets of compliant GLP Standardized titration results; Supports data statistics function, allowing users to count, review, analyze and compare titration results. ;

Supporting /Two operating languages in English; Support user management function ;

Supports power outage protection function and self-diagnosis function;

support USB、RS232 connect PC, Two-way communication, support U Plug and play on the disk, randomly give away special titration software;

Automatic sampler can be directly connected to achieve automatic measurement of batch samples.


【Technical parameters]

model

Technical parameters

ZDJ-5B-T

drop

Certainly

Pack

Set

Capacity Titration

unit

Titration analysis repetition

0.2%

Allowable Error of Titration Capacity

10ml Burner: ±0.025ml;20ml Burner: ±0.035ml

Burner resolution

10ml Burner: 1 /10000;20ml Burner: 2 /10000

Burner infusion or

Rehydration speed

(50±10)s( When the buret is full)

Test

quantity

Pack

Set

Potential titration

Module

Measurement range

(-1999.0~1999.0)mV,(0.00~14.00)pH

Resolution

0.1mV,0.01pH

Basic error

±0.03%FS,±0.01pH

stability

(±0.3mV±1Words) /3h

Temperature titration

Module

Measurement range

0~60℃

Electronic unit repeatability error

0.001℃

Temperature compensation

Measurement range

(-5.0~105.0)℃

Resolution

0.1℃

Basic error

±0.3℃

power supply

AC(220±22)V; Frequency (50 ±1)Hz

size( mm), weight( kg)

340×400×400,10
