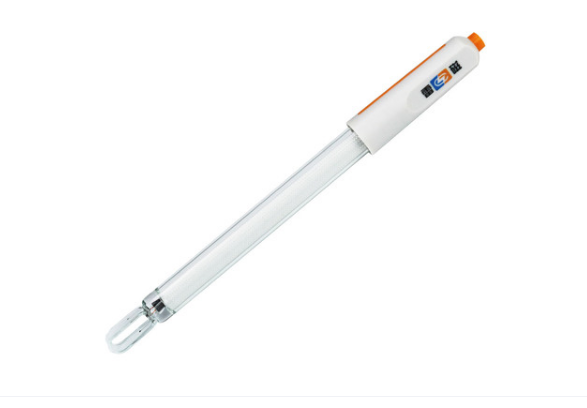

RUThree letters DJS-0.1-C Glass conductive electrode
Price：￥730
Laboratory/Medical Field
Integrated suppliers of equipment, reagents, and consumables
Diode chip conductive electrodes are currently the most commonly used type of conductor electrodes in China. The structure of laboratory diode chip conductive electrodes is to sinter the platinum sheet on a parallel glass sheet or the inner wall of a circular glass tube, adjust the area and distance of the platinum sheet to make conductive electrodes of different constant values. The platinum black conductive electrode can effectively prevent polarization when measuring a higher conductivity solution.
Technical parameters:
model | Measurement range ( μS/cm） | Housing material | Dimensions ( mm） | Connectors | Waterproof parts |
DJS-1C（ Platinum black) | 0-20000 | Glass | Φ12×120 | Three core aerial plug | — |
DJS-1C（ bright) | 0-3000 | Glass | Φ12×120 | Three core aerial plug | — |
DJS-1CF（ Platinum black) | 0-20000 | Glass | Φ12×120 | Three core aerial plug | have |
DJS-1CF（ bright) | 0-3000 | Glass | Φ12×120 | Three core aerial plug | have |
DJS-1（ Platinum black) | 0-20000 | Glass | Φ12×120 | Direct insert | — |
DJS-1（ bright) | 0-3000 | Glass | Φ12×120 | Direct insert | — |
DJS-0.1C（ platinum) | 0-200 | Glass | Φ12×120 | Three core aerial plug | — |
DJS-0.1CF（ platinum) | 0-200 | Glass | Φ12×120 | Three core aerial plug | have |
DJS-0.1 | 0-200 | Glass | Φ12×120 | Direct insert | — |
DJS-10C | 2000-200000 | Glass | Φ12×120 | Three core aerial plug | — |
DJS-10CF | 2000-200000 | Glass | Φ12×120 | Three core aerial plug | have |
DJS-10 | 2000-200000 | Glass | Φ12×120 | Direct insert | — |
DJS-0.01C（ Titanium alloy) | 0-2 | Titanium alloy | Φ18×50 | Three core aerial plug | — |
260 | 0.1-1000 | Glass | Φ12×120 | Fork slices | — |
