Seed Germination and Growth Experiments: Environmental Control Solutions

Experimental Challenges and Critical Requirements

Seed germination and growth studies necessitate precise regulation of temperature, humidity, and photoperiod parameters, with core demands including:
Environmental Stability:

Minimized thermal/hydration fluctuations to ensure germination uniformity (±0.5% variance).
Ecological Simulation:

Programmable diurnal/nocturnal cycles, seasonal temperature gradients, and spectral composition control.

Data Traceability:
Continuous parameter logging for experimental reproducibility (ISO/IEC 17025 compliant).

Operational Efficiency:
Multiphasic programming and remote monitoring capabilities for complex protocols.

Shanghai Boxun's Precision Control Systems

As a specialized laboratory equipment provider, Shanghai Boxun delivers incubators and plant growth chambers featuring:

Thermal Precision: ±0.2°C (water-jacketed) or ±0.5°C (illuminated) stability

Multivariate Regulation: Independent control of T/RH/light intensity (400-700nm PAR)

Intelligent Monitoring: RS-485 connectivity with data archiving/retrieval

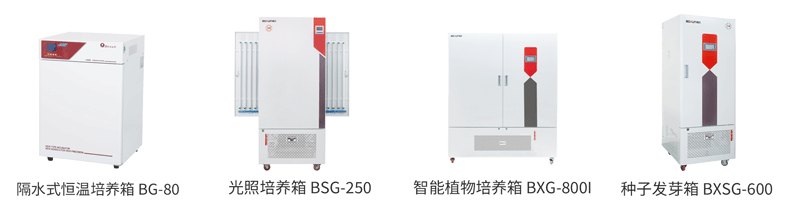

Recommended Instrumentation

1.Fundamental Germination Studies

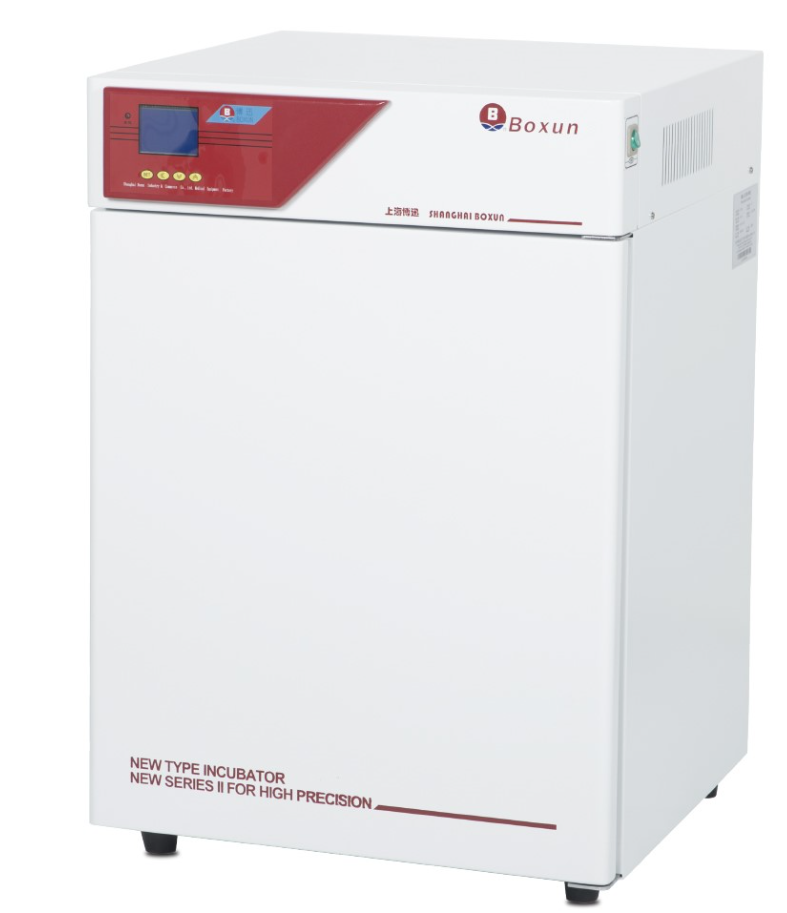

Water-Jacketed Incubator BG-80

Thermal Performance: RT+2°C to 65°C (±0.2°C)

Chamber Dimensions: 400×400×500mm (80L capacity)

Application: Parallelized germination trials

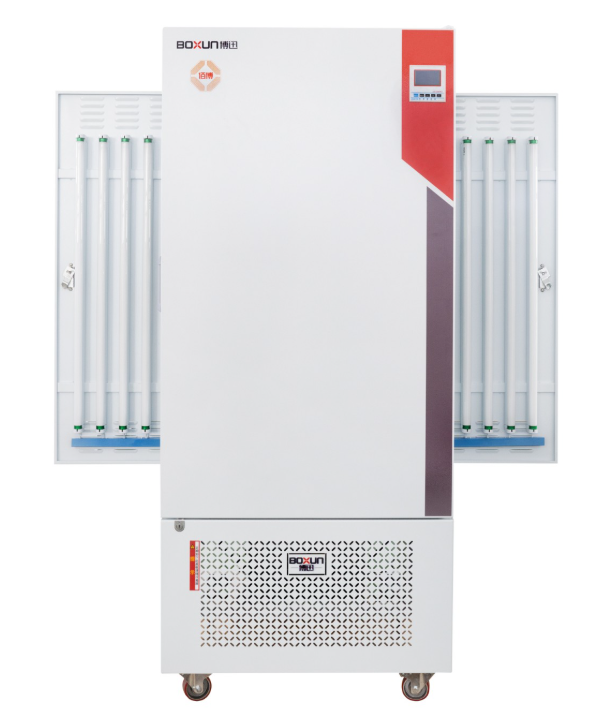

Illuminated Growth Chamber BSG-250

Photoperiod Control: 6-level intensity adjustment

Optical Uniformity: 3D light distribution technology

Temperature Ranges:

Dark phase: 0-60°C

Illuminated phase: 10-60°C

Chamber Volume: 480×480×1100mm (250L)

2.Advanced Environmental Simulation

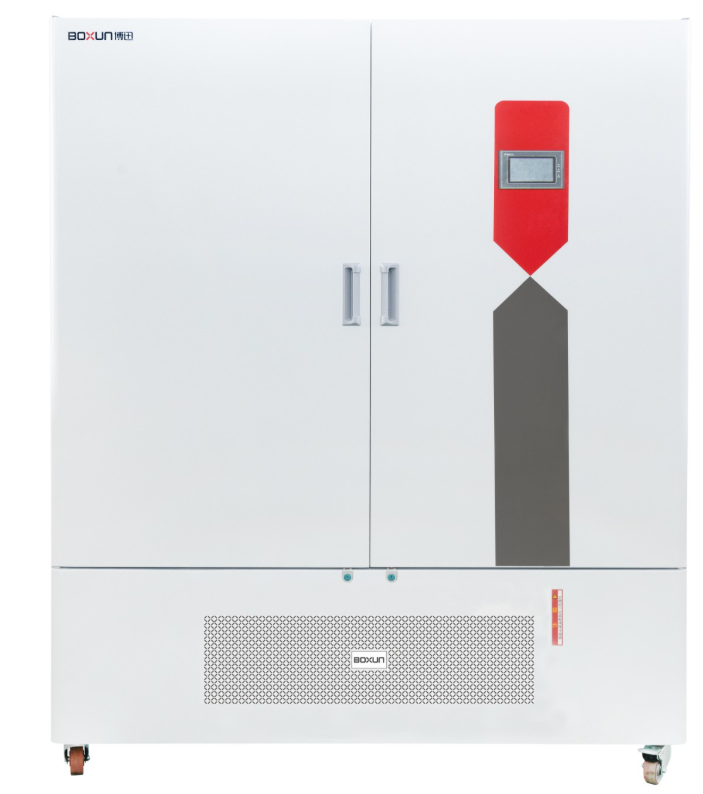

Intelligent Plant Growth Chamber BXG-800I

Full-Spectrum LED: 0-65,000 lux stepless dimming

Atmospheric Control:

RH: 50-95% (±3%)

CO₂: 400-2000 ppm

Data Management: 100,000-record storage with USB export

Research Applications: Stress physiology, breeding programs

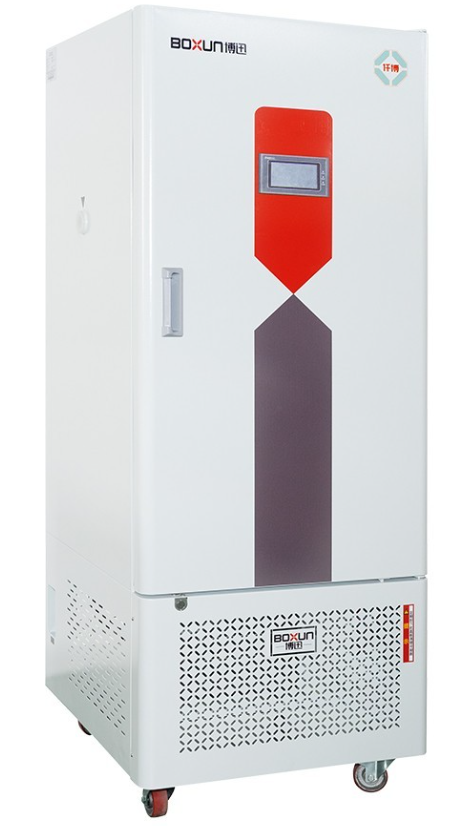

Seed Germination Cabinet BXSG-600

Modular Lighting: Tier-specific intensity control

Thermal Range: 0-70°C (±0.8°C)

Humidification: Ultrasonic fogging (minimal thermal interference)

Illumination: 0-20,000 lux

Experimental Implementation Protocol

1.Photoperiod Response StudyApparatus: BXG-800I chamber

Parameters:

Diurnal: 25°C + 450 μmol·m⁻²·s⁻¹ PAR

Nocturnal: 18°C + darkness

Metric: Germination rate kinetics

2.Photosynthetic Efficiency Optimization

Apparatus: BSG-250 chamber

Methodology: 3D irradiance mapping for seedling canopies

3.Data Integrity Assurance

RS-485 enabled chambers (e.g., BSG series) for real-time T/RH logging

Automated data backup protocols

Maintenance and Safety Protocols

Condenser Maintenance: Quarterly cleaning (tool-free disassembly in BXSG-600)

Safety Systems:

Dual-circuit thermal protection

Over-temperature alarms (e.g., GSP-9050MBE configuration)

Calibration: ISO 9001-compliant annual validation
