In Vitro Embryo Transfer Technology: Precision Fluid Handling Solutions

Technical Challenges and Research Imperatives

In vitro fertilization and embryo transfer (IVF-ET), as a critical intervention for infertility treatment, encompasses meticulously controlled procedures from ovarian stimulation to post-transfer care. This process demands not only precise operational techniques but also rigorous regulation of embryo transfer velocity and environmental conditions to optimize implantation success. Consequently, global research laboratories are intensifying investigations into transfer dynamics, utilizing precision infusion pumps to accurately replicate clinical manual injection protocols. This ensures experimental reproducibility and advances therapeutic methodologies.

A leading medical research laboratory at a prominent Chinese university has specified these requirements:

High-Precision Microinjection:

Faithful simulation of clinical embryo transfer kinetics.

Complex Flow Profiles:

Capacity for non-uniform flow patterns (ramp-up/ramp-down sequences).

Laminar Flow Characteristics:

Minimal pressure fluctuation (ΔP < 5%) to mitigate intrauterine disturbance.

Compact Form Factor:

Space-efficient design for integration with existing laboratory instrumentation.

Remote Operability:

Communication interfaces enabling distant control and monitoring.

LONGER's Advanced Fluid Control Systems

As a global innovator in precision fluid handling, LONGER delivers engineered solutions for IVF-ET research through its portfolio of syringe and peristaltic pumps, providing accurate, stable, and ergonomic support for embryonic fluid manipulation.

Technical Advantages:

Telemetry Control:

Proprietary PC software and Android application enable remote operation with automated data logging, facilitating subsequent analysis.

Ergonomic Configuration:

Modular actuator units (weight: <300g) support handheld operation or bench mounting, streamlining experimental setups.

Low-Pulsation Infusion:

Advanced damping mechanisms maintain laminar flow (pressure variance ≤±2%), ensuring embryo transfer stability and potentially enhancing implantation outcomes.

Dynamic Flow Programming:

Stepper motor microstepping technology enables complex profiles:

Constant flow

Ascending/descending ramps

User-defined sequences

Nanoscale Accuracy:

Exemplified by the dLSP 501X digital syringe pump:

Flow range: 0.0048 nL/min to 95.82 mL/min

Resolution: 2.4 pL/step

Accuracy: ±0.5% (ISO 7886-1:2017 compliant)

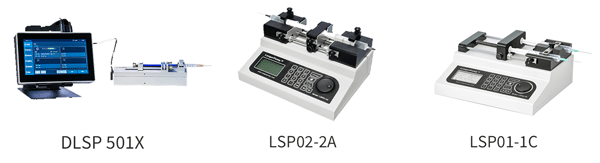

Recommended Instrumentation:

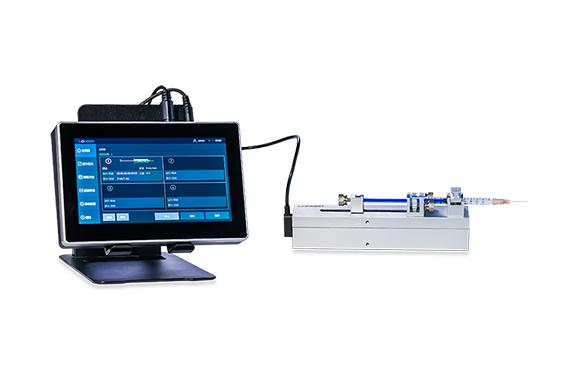

dLSP 501X分体式实验室注射泵

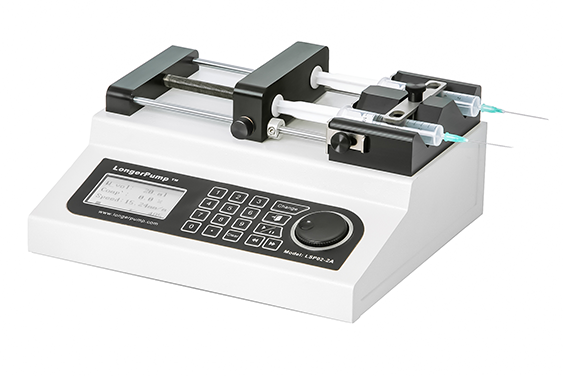

LSP02-2A 一体式实验室注射泵

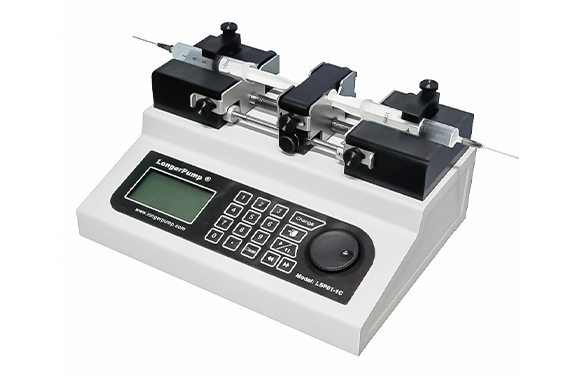

LSP01-1C 一体式实验室注射泵
