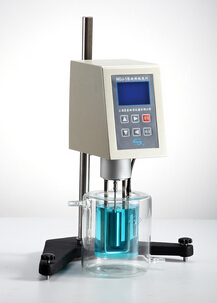

1. Instrument Overview: This instrument adopts advanced mechanical design technology, manufacturing technology and microcomputer control technology, and accurate data acquisition； The monitor uses white backlight and high brightness LCD Display screen, data display is clear； It is designed with a dedicated printing interface, which can print out measurement results through the printer.

2. Main technical characteristics

1、This feature includes the following instruments: 1 B、5S、8S、99、9S、1B-1、1E

2、This instrument adopts advanced mechanical design technology, manufacturing technology and microcomputer control technology, accurate data acquisition, high measurement sensitivity, reliable test results, easy to use and elegant shape.
3、The monitor uses white backlight and high brightness LCD The display screen can directly display the rotor number, speed, viscosity, percentile torque, real-time temperature of the sample being measured and the maximum range of the selected rotor at the current speed. The instrument is equipped with RS232 Communication interface, which can communicate with the computer and print measurement results through the optional printer, and the power supply uses DC 12 V and 24 V The two adapters have strong anti-interference ability. The adhesive temperature curve software can be used to achieve human-computer dialogue. Its functions and performance have reached the same level at home and abroad, so it has high cost performance and is loved by users. It is the first choice instrument for schools, laboratories and scientific research institutions.

4、The speed can be preset 4, 8 and 18 gears, and the speed can be adjusted without limit to meet the measurement requirements of different ranges. In addition to the normal standard rotor (1#, 2#, 3#, 4#), the instrument can also select ultra-low viscosity adapter (0# rotor) and small sample adapter (21#, 27#, 28#, 29# rotor) according to customer needs.

5、The instrument has an upper and lower limit alarm or digital flashing prompt function beyond the range. It not only protects the instrument from damage, but also saves measurement time due to timely adjustment of the rotor or speed.

6、The instrument is equipped with a temperature sensor in real time to monitor the temperature of the sample to ensure accurate measurements, and the measurement temperature range is 0-200 ℃，Measurement accuracy ±0.1℃.

7、The instrument is equipped with a demonstration operation disc in real time to guide the user to operate the instrument, and it is easy to use.

3. Main technical indicators and parameters

4. Optional accessories
1. HWY-10 Circulating constant temperature water bath
2. Special double-layer sample cup
3. 0#Rotor
4. Standard viscosity oil
5.Small sample adapter
