Product/Brand

Rotational Viscometer

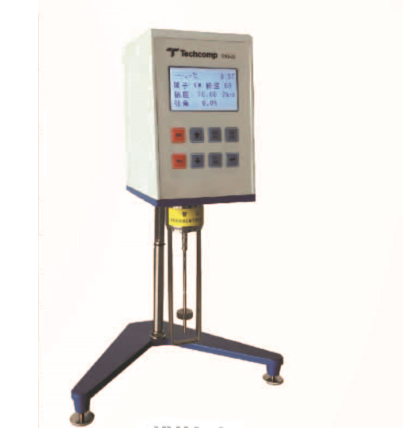

Shanghai Tianmei Digital Viscometer SNB-1EL
Price:¥7371

WeChat

Brand:Techcomp
Model:SNB-1EL
Inventory Status:Spot promotion/please call for consultation
Contact:
Tel:+86 010-51660436
Email:dnyc_sales@163.com
Details Documentation Related

Product Description:

SNB-E The series of digital viscometers are intelligent liquid viscosity measuring instruments that use 16-bit high-performance single-chip microprocessing technology. Under computer control, the liquid viscosity measurement work is automatically completed, and the results are output from the display screen. It has the characteristics of small structure, stable work, good anti-interference performance, high energy measurement accuracy and simple operation. It can be used to measure the viscosity resistance of the liquid and the absolute viscosity of the liquid.


◆Extremely large LCD LCD screen, can switch between Chinese and English operations

◆Real-time clock function, compliant GMP/GLP Require

◆Portable design, supports online mobile detection

◆External power adapter reduces the weight of the instrument and improves reliability

◆External semiconductor temperature probe, measuring temperature range -50 ~99℃

◆Can be equipped with standard or optional "0" rotor, with a wide measurement range (0.1~6×106mPa.s)

◆Standard RS232 Interface, external printer or computer


Technical parameters

modelSNB-1ESNB-1ELSNB-2ESNB-2ELSNB-3E
Measurement range (mPa.s)1~1x1050.1-1×1051-2x1060.1-2×1061~6x106
Rotor speed (r/min)6/12/30/600.3/0.6/1.5/3/6/12/300.1/0.3/0.6/1.5   /3/6/12/30/60
Rotor specifications1.2.3.40.1.2.3.4 1.2.3.40.1.2.3.41.2.3.4
Measurement error±2%F.S
showLCD LCD display (Chinese and English )
Working power supplyAC 100~240V DC 12V
Data outputEXCELTXT File output (PC end )Or connect the printer (standard RS232 interface )
External dimensions (mm)470×235×390
net weight /Gross weight (kg)4.5/7.4
Working environmentTemperature 5 ℃-35℃,Relative humidity is not greater than 75%
