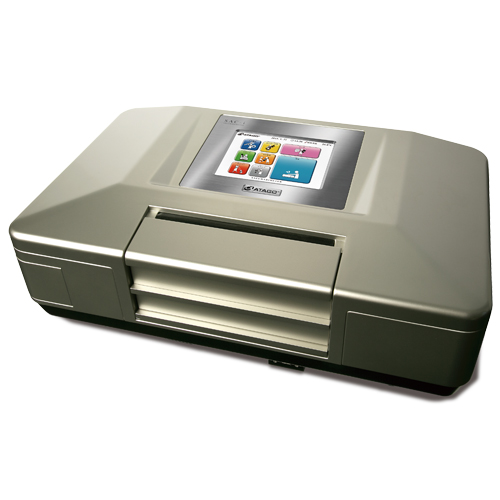

SAC-i Fully automatic optical rotator (single wavelength)

【Product Introduction

*13S Reach the stable measurement value (4 in continuous measurement state S Reaching the measured value)

*Resolution 0.0001 °

*Up to 999 automatic continuous measurements can be performed, and the average value can be displayed at the end

*Unique delay detection function, which can detect samples after a set time period

*Enhance the operability of the instrument through intuitive touch screen design

*The instrument repeatability is achieved ±0.003°

*589nm and 882 nm Double wavelength optional

*Can be used with ATAGORX Series desktop digital refractive indexes are used online to automatically detect the purity of the samples

*SAC-i The main interface of the optical rotator can choose from 6 overall styles, 3 graphic themes, and 2 background settings.

*The measurement interface with a setting window (bottom left), can easily set the basic parameters of the instrument in the main measurement interface, and the touch screen can be switched to a data history window

*Scale setting interface, easy to edit and store your own set scales

*4A measurement mode, a measurement method tailored for customers - mode, waiting time, contact measurement, temperature and other methods

*pass ATAGO A series of technological innovations make the repetition of the optical rotator possible. SAC-i The repetitiveness indicators are the highest among the same-class products. Its excellent repeatability and accuracy make it easy to measure samples that are difficult to detect in the traditional sense.

*ATAGOSAC-i Fully automatic optical rotator passes PTB（ German Institute of Physical Technology) certified standard quartz films check all aspects of good production verification

*CONSECANA Will SAC-i As the only officially recognized optical actuator, it is vigorously promoted within the organization. CONSECANA It is the Brazilian Sucrose Producers Association and an important representative of the world's sucrose industry

*ATAGOSAC-i Fully automatic optical rotator can accommodate up to 200 mm Optical rotary tube

*USB The interface is designed on the front of the host, making it easy to plug and unplug

【Technical parameters]
