Automatic Polarimeter

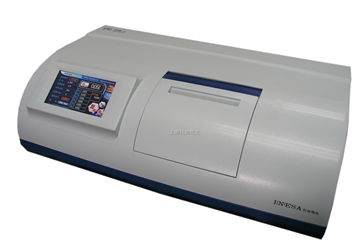

Shanghai Object Light Automatic Optical Alternator SGW-1
Price:¥18000

WeChat

Brand:INESA
Model:SGW®-1
Inventory Status:Spot promotion/please call for consultation
Contact:
Tel:+86 010-51660436
Email:dnyc_sales@163.com
Details Documentation Related

Product Description

1、SGW®-1Automatic optical rotator is a new product developed by our factory, and its characteristic is that its service life is greater than 5,000. h As a light source, the large-scale light emitting diode lamps replace the previous short service life and easy to damage sodium light and the high-temperature tungsten halogen lamps, which greatly eliminates the inconvenience caused by users to frequently replace sodium light lamps.

2、Another feature of this instrument is that the temperature of the sample chamber can be well consistent with the ambient temperature, avoiding errors and inconveniences caused by the temperature increase of the sample chamber. It has four test modes: optical rotation, specific rotation, concentration, and sugar. It can automatically retest 6 times and calculate the average value and root mean square. It can display the sample temperature and can measure dark samples. The accuracy of the instrument is up to 0.02.


Technical parameters

Product model

SGW?-1

Measurement mode

Optical rotation, specific rotation, concentration, sugar level

Instrument light source

Light emitting diode (LED)+Interference filter

Working wavelength

589nm (sodium D  spectrum )

Measurement range

±45°(Optical rotation )  ±120°Z(Sugar level )

Minimum reading

0.001°(Optical rotation )

Display error

±0.01°(﹣15°≤Optical rotation ≤+15°hour)

±0.02°(Optical rotation <﹣15°Or optical rotation >+15°hour )

Repeatability (Standard deviation δ)

0.002°(Optical rotation )

Temperature control range

/

Temperature control accuracy

/

Display method

7Cun color LCD touch screen

Standard test tube

100mm/200mm   Normal type

Minimum sample transmittance

1%

Communication interface

RS232/USB

Data storage

1000Group

power supply

220V±22V,50Hz±1 Hz

Instrument size

718mm×400mm×220mm

Net weight of the instrument

35kg

Instrument Level

0.02class
