Dual-beam spectrophotometer that pursues ease of operation and data reliability

Support offline control or PC Control, compatible with previous models U-2900/2910sample bin. Software upgrade, more convenient operation.

Features

Increase efficiency・Upgrade software

UH5210（PC Control type) equipped with new version of software UV Solutions Plus， Provides a simpler and more intuitive operating interface than the old version UV Solutions， New data list display, custom report format and instrument performance detection functions have been added to improve the accuracy of the analysis process. at the same time, UH5200 It can also be implemented by selecting this software PC Control to improve operational flexibility.

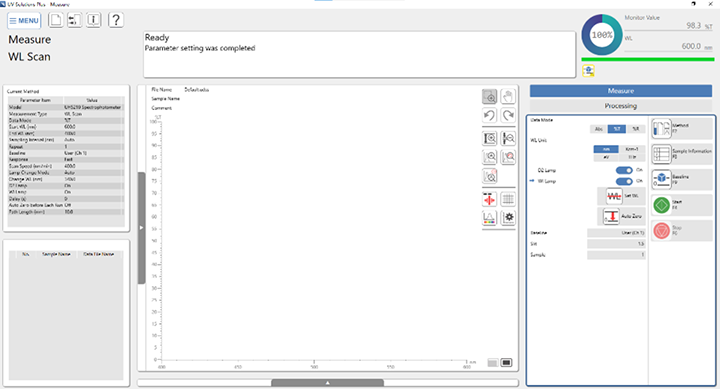

UV Solutions Plus Software interface

intelligent・Data Management

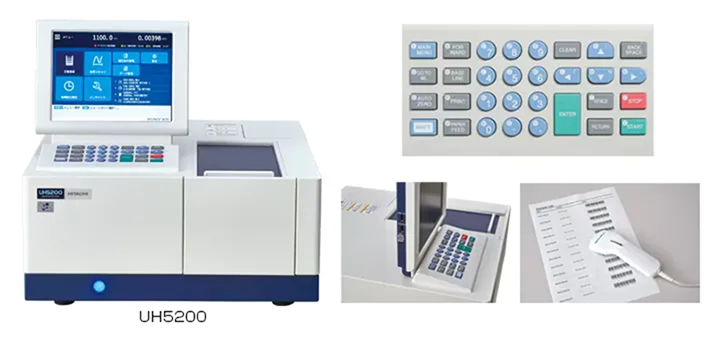

UH5200 Not only is it equipped with high resolution color LCD Large screen and convenient keyboard can also be passed USB The interface is easily connected to external devices (card reader, keyboard) to realize automatic reading of sample information, and supports U Disk data storage, convenient and efficient.

*External input devices are provided by the customer

reliable・Core components

UH5200/5210use Seya-Namioka It has a built-in diffraction grating made by the company's independently developed grating lithography machine, ensuring high brightness and no aberration of the optical system.
The dual-beam system uses a semi-reflector to split the optical path and instantly compensate for energy changes including the light source, ensuring the stability of long-term testing.

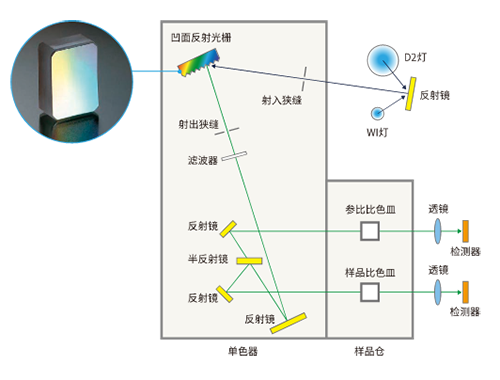

UH5200/5210Optical system

index

*Protruding parts that do not include connectors, etc.
