Measurement range

0.1mg～250mg

Repeatability error of instrument analysis

±3%

Polarization current

1μA

End point setting range

40～120mV

The temperature of the solution to be tested

（5～30）℃

size( mm）， weight( kg）

280×210×120；5

1.

2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.
18.
19.
20.
21.
22.
23．
24．
25．
26．
27．

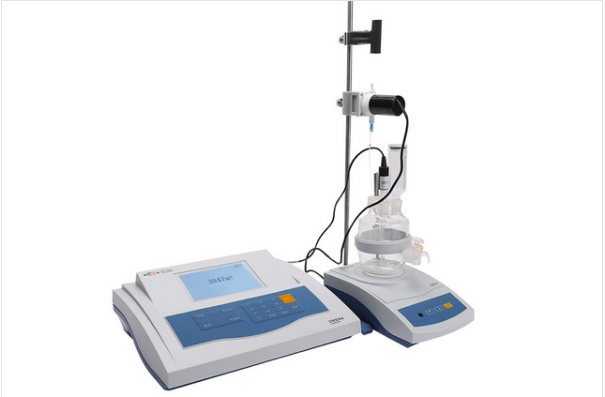

 ZDY-501 Type moisture analyzer

 501Measuring electrodes
 JB-10 Type stirrer
 Solenoid valve component (with 1 fastening screw)
 International general power cord
 9VDC,500mA DC voltage-regulated power supply
 BGXP-1 Fuse tube φ5×20 0.5A
 Electrode rod A assembly (With 1 electrode rod lining )
 Electrode rod B
 Fixing frame support rod assembly (with 1 electrode rod lining )
 Clip part  (With 1 fastening screw )
 Support seat components  (Rubber foot pads installed )
 Solution cup fixing rack (With 1 fastening screw )
 Solution cup assembly (with capillary rubber, puncture-resistant rubber, inlet nut)
 Drying bottle assembly (with sealing ring and bottle plug)
 008T16-080-20 Polytetrafluoroethylene tube ( L=200mm， Bei'ang)
 008NC16-YC6U Casing (Beiang)
 008CZ16 Inverted conical washer (Beiang)
 Silicone rubber tube (inner diameter φ3Outer path φ6，L=500mm）
 Stir beads  (B620)
 Puncture-resistant rubber
 Wear capillary rubber
 Two-component pyridine solvent A/B
 7501Vacuum silicon grease
 ZDY-501 Instructions for use of a moisture analyzer
 JB-10 Type stirrer instruction manual
 Product Certificate

 1tower

1branch
1tower
1Parts
1root
1Only
2Only
1Parts
1Parts
1Parts
1Parts
1Parts
1Parts
1Parts
1Parts
2root
2Only
2Only
1root
3Parts
20Parts
10Parts
1set
1bottle
1share
1share
1share
