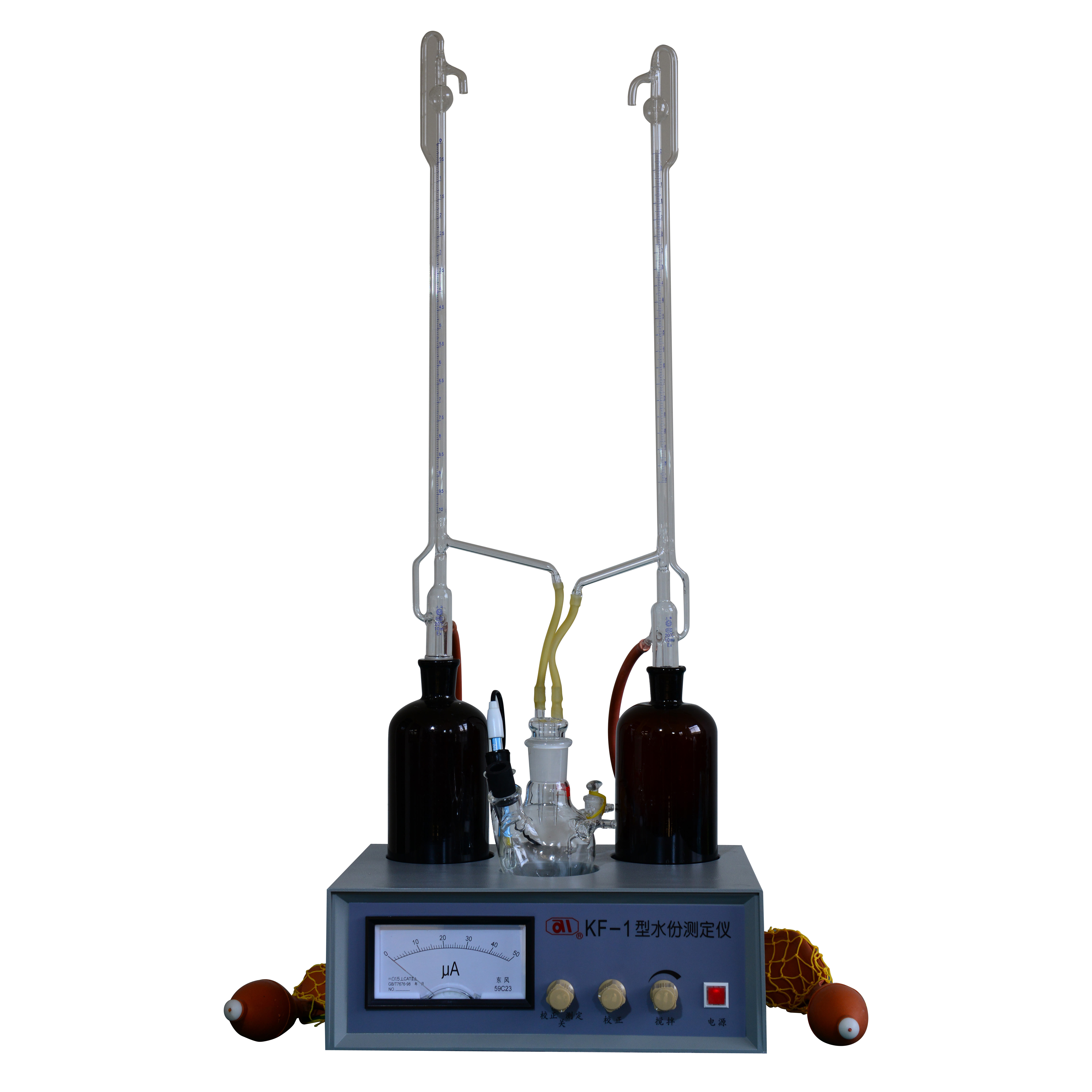

RUAnting Electronics KF-1 Moisture measuring instrument
Price：￥2100
Laboratory/Medical Field
Integrated suppliers of equipment, reagents, and consumables
【Main features】
Dot matrix LCD display, key operation, computer Chinese software controls or controls separately； Display relevant test methods and measurement results in real time ；
“Conversational" operation steps to easily complete titration settings and process operations；
Pollution-free measurement and analysis process: liquid leakage prevention device and waste liquid bottle anti-sucking device； Automatic liquid inlet and drain, KF Reagent mixing and automatic cleaning function, protection against overflow of titration cup solution； Prevent direct contact from users KF Reagents to ensure the safety of the measurement and use staff and the environment；
Supports pre-titration, automatic titration, manual titration, constant titration, KF Various titration modes such as titer determination can satisfy the analysis of different types of samples；
Users can choose on demand mg、mg/L、%、ppm Various measurement results units； Instrument support GLP Standardized, supports storage of 200 sets of measurement data； Supports data storage, deletion, reference, printing or output ；
It has power outage protection function and KF Reagent failure detection and reminder function；
Instrument support USB and RS232 Interface, can connect to the printer； Randomly equipped with special titration software, instruments support connection PC Machine control；
Supports solid version upgrades and software upgrades.
【Technical parameters]
model Technical parameters | ZDY-502 |
Measurement range | 0.1mg～250mg |
Resolution | 0.1mg |
Polarization current accuracy | 1μA±0.2μA；50μA±10μA； |
Repeatability of titration analysis | ±0.5% |
power supply | （220±22）V，（50±1）Hz |
size (mm)，weight (kg) | 340×400×400，10 |

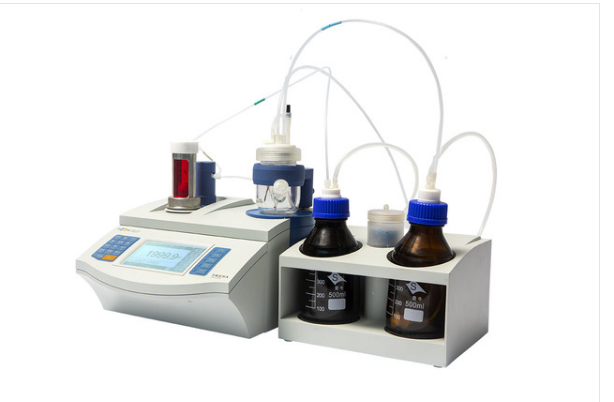

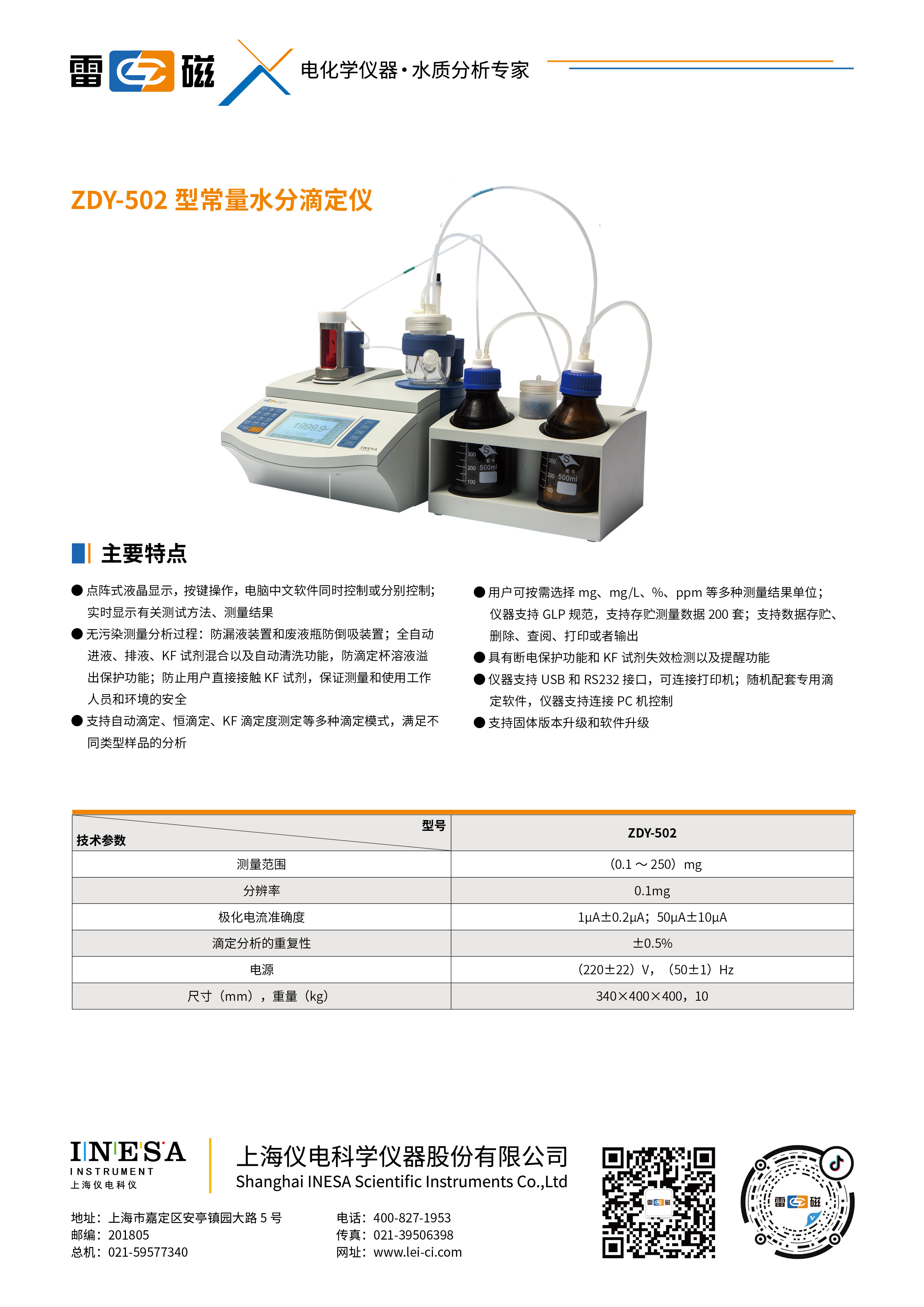

ZDY-502 Type moisture analyzer
Serial number | Name and specifications | quantity |
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 | ZDY－502Type constant moisture titrator External equipment 500mL The solution bottle contains the cap and the interface (GL45) Measuring electrodes (SC8.446.006) Non-diffusion capillary DFAQ-6-1543-200 Conical interface clip (yellow) (Specifications: 14 /23) Solution cup (SC8.729.023) Rod tool (SC8.227.126) Burner device 10 mL (SC5.461.050) Stir beads (middle ) Solution cup fixing rack (SC5.043.005) 5Lift polyethylene barrel Infusion tube (Fluoroplastic, white sleeve )Φ3.2×0.5〔L=150mm〕 Infusion tube (Fluoroplastic, green casing )Φ3.2×0.5〔L=900mm〕 Infusion tube (Fluoroplastic )Φ3.2×0.5〔L=450mm〕 A Liquid infusion tube (Fluoroplastic, blue casing, >Drop infusion tube (Fluoroplastic, red casing, L= 800mm,φ5×φ3) Exhaust infusion tube (Fluoroplastic, red casing, L= 900mm,φ5×φ3) Silicone tube φ6×φ3 (L=350mm 2 root ，L=800mm 1 root ) Silicone tube φ6×φ3 (spare ) Drip gasket (SC8.370.312) Puncture-resistant gasket ( SC8.370.298） Pipe connection nut GS-14A,B(White ) Casing 008 NF32-YC6B(black ) Inverted cone gasket 008 CZ32 Microsampler (100 μL; 1mL） Vacuum Silicone Grease Great Wall (7501) Color-changing silicone (500g) KF-4 Reagents ( KF-4A、KF-4B 1 bottle of reagents), (separately packaged) fuse Φ5×20 ( 3A ) Universal power cord Connection cable between external devices and host 232Printer connection USB Communication connection “Lei Magnetic Titration Communication Software" CD ZDY-502 Instructions for use Certificate of conformity | 1tower 1tower 2set 1branch 1Only 1Only 1Only 1Only 1set 3Only 1set 1Only 1root 1root 1root 1root 1root 1root 3root 1.5rice 5Only 20Only 3set 1Only 1Only 1 each 1bottle 1bottle 1set 2Only 1root 1root 1root 1root 1open 1Book 1share |
