Product/Brand

Multi-Parameter Water Quality Analyzer

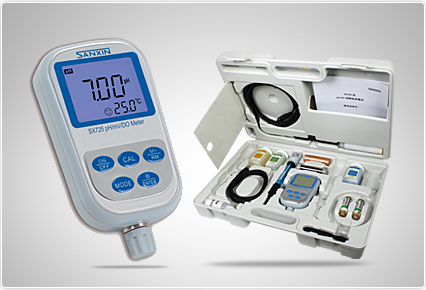

Three letters SX725 Portable pH/Dissolved oxygen meter
Price:¥3700

WeChat

Brand:SANXIN
Model:SX725
Inventory Status:Spot promotion/please call for consultation
Contact:
Tel:+86 010-51660436
Email:dnyc_sales@163.com
Details Documentation Related

Product Features

1、Dual parameter instrument, configuration pH Electrode and dissolved oxygen electrode, the instrument automatically recognizes the electrode.

2、Built-in microprocessor chip, with intelligent functions such as automatic calibration, automatic temperature compensation, data storage, function settings, self-diagnosis information, automatic shutdown and low voltage display.

3、Automatically identify 13 types pH Standard buffer solution, there are three series of standard buffer solutions to choose from: European and American series, NIST Series and Chinese series.

4、Can set high-purity water pH Measuring mode and ammonia-added pure water pH Measurement mode.

5、The dissolved oxygen measurement mode has the functions of automatic temperature compensation, automatic salinity compensation and manual air pressure compensation.

6、The polarographic dissolved oxygen electrode with a new structure can measure temperature, salinity and dissolved oxygen simultaneously. It is equipped with a dedicated dissolved oxygen electrode calibration sleeve, and the electrode polarization requires only 3 ~5min。

7、Instrument conforms IP57 Waterproof grade, configuration of calibration solution and suitcase.



 Technical parameters

PH

Measurement range

(-2.00~19.99)pH

Resolution

0.1/0.01pH

Accuracy

Electrical meter: ±0.01pH, Supporting: ±0.02pH

Input current

≤2×10-12A

Input impedance

≥1×1012Ω

stability

±0.01pH/3h

Temperature compensation range

(0~100)℃(automatic)

mV

Measurement range

-1999mV~0~1999mV

Resolution

1mV

Accuracy

Electrical meter: ±0.1%FS

Dissolved oxygen

Measurement range

(0~20.00)mg/L(ppm)(0~200.0)%

Resolution

0.1/0.01mg/L(ppm)1/0.1%

Accuracy

Electrical meter: ±0.10mg/L, Supporting: ±0.40mg/L

Response time

≤30s(25℃,90%response)

Residual current

≤0.1mg/L

Temperature compensation range

(0~45)℃(automatic)

Salinity compensation range

(0~45)ppt( automatic)

Air pressure compensation range

(66~200)kPa( Manual)

Automatic calibration

Air saturated with water; Water saturated by air

Electrode type

Polarographic

Other technical parameters

Data storage

300Group

Save content

Number, measured value, unit of measurement and temperature value.

power supply

AA 2 batteries (1.5 V×2)

Size and weight

meter: (65×120×31)mm/180g; suitcase: (360×270×76)mm/1.6Kg

Quality and safety certification

ISO9001:2000,CE and CMC

Working conditions

Ambient temperature

5~35℃(0.01class)

Ambient humidity

≤85%

IP grade

IP57 Dust-proof and waterproof
