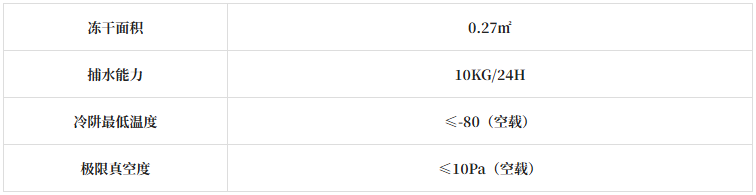

Product parameters:

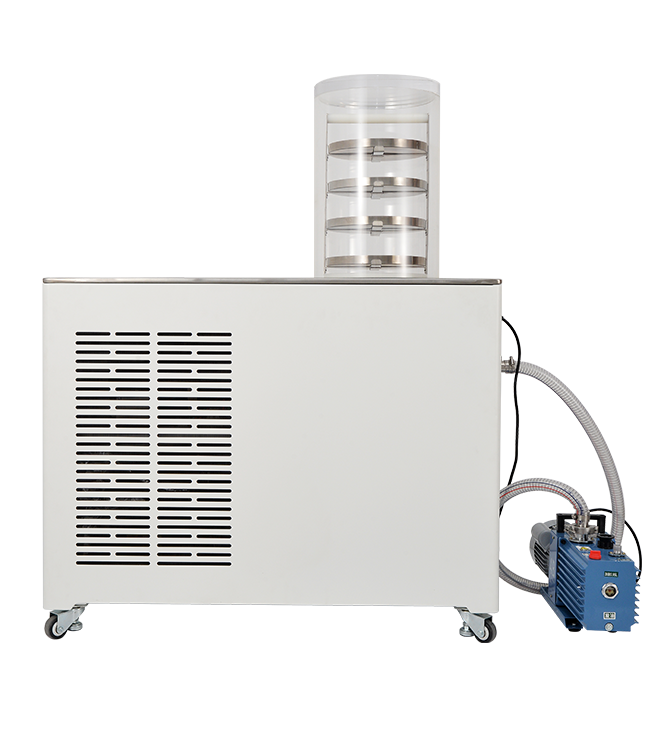

model: ZX-LGJ-27A（ Normal type)
Freeze-dried area: 0.27 ㎡
Number of partition layers: 6 layers
Material capacity: 2700 mm
Drying room size: 280 *430
Cold trap size: 300 *410
Water capture capacity: 10 kg/24h
Cold trap minimum temperature: ≤-80（No load)
Minimum temperature time: ≤120
Extreme vacuum degree: ≤10pa（ No load)
The ultimate vacuum time is reached: ≤20
Number of material trays: 6
Material tray spacing: 70 mm
Pre-freezing rack: standard, 1 bracket
Vacuum pump: standard 4 L/min Domestic vacuum pump, imported pump optional
External dimensions of the whole machine: 1000 *545*800（No drying room included)
