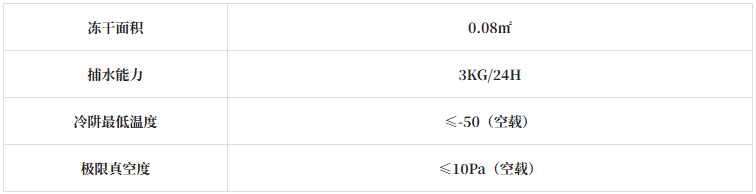

Product parameters:
model: ZX-LGJ-1D（ Multi manifold gland type)
Freeze-dried area: 0.08 ㎡
Number of partition layers: 3 layers
Material capacity: 900 mm
Drying room size: 240 *435
Cold trap size: 250 *140
Water capture capacity: 3 kg/24h
Cold trap minimum temperature: ≤-50（No load)
Minimum temperature time: ≤90
Extreme vacuum degree: ≤10pa（ No load)
The ultimate vacuum time is reached: ≤20
Number of material trays: 3
Material tray spacing: 70 mm
Pre-freezing rack: standard, 1 bracket

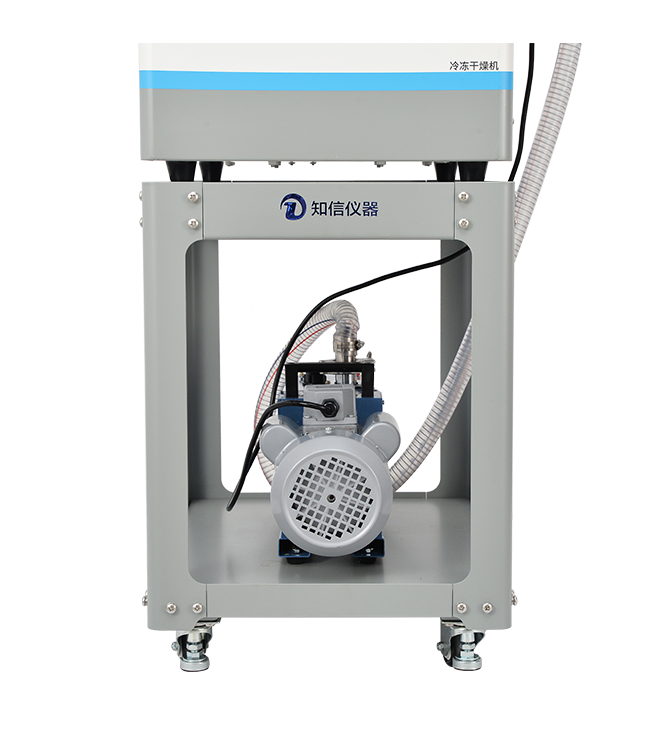

Vacuum pump: standard 4 L/min Domestic vacuum pump, imported pump optional
External dimensions of the whole machine: 420 *600*1063（No drying room included)
The weight of the whole machine: 55 kg
The whole electromechanical power: 1.1 kw
