Shanghai Lei Magnetic Conductivity Meter DDSJ-318_Conductivity Meter

Conductivity Meter

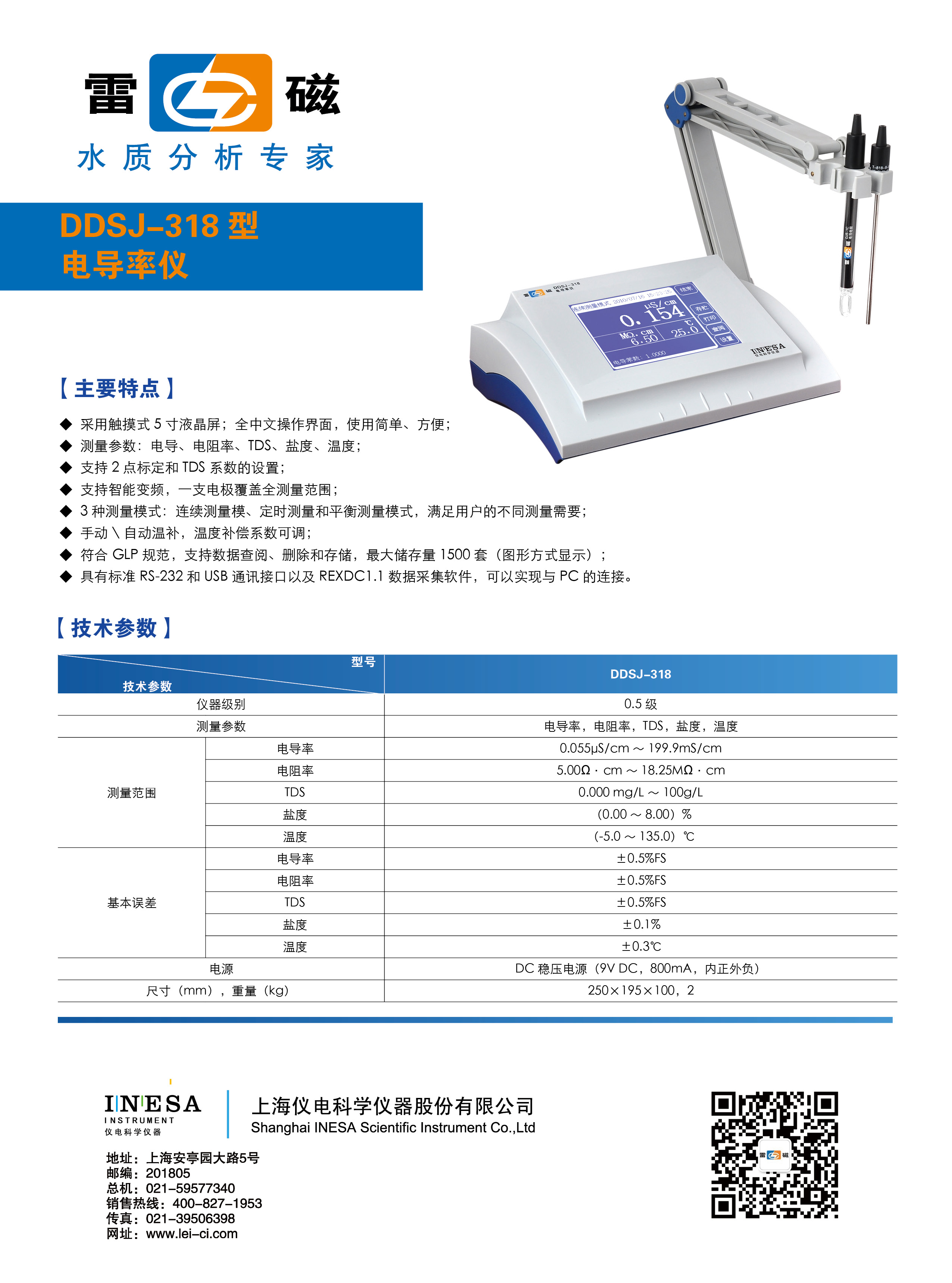

Shanghai Lei Magnetic Conductivity Meter DDSJ-318

Price：￥6800

WeChat

Brand：lei-ci
Model：DDSJ-318
Inventory Status：Spot promotion/please call for consultation

Contact：: Tel：+86 010-51660436
Email：dnyc_sales@163.com

Details Documentation Related

【Main features】

●Adopt a touch-type 5-inch LCD screen； Full Chinese operating interface, easy to use and convenient

●Measurement parameters: conductivity, resistivity, TDS、 Salinity, temperature；

●Supports 2-point calibration and TDS Setting of coefficients；

●Supports intelligent frequency conversion, one electrode covers the full measurement range；

● 3Type measurement mode: continuous measurement mode, timing measurement and balance measurement mode to meet the different measurement needs of users；

●Manual automatic temperature compensation, adjustable temperature compensation coefficient；

●conform to GLP Standardized, supports data review, deletion and storage, with a maximum storage capacity of 1,500 sets (displayed in graphical form)；

●Has standard RS-232 and USB Communication interface and REXDC1.1 Data acquisition software can be implemented with PC connection.

【Technical parameters]

model Technical parameters		DDSJ-318
Instrument Level		0.5class
Measurement parameters		Conductivity, resistivity, TDS， Salinity, temperature
Measurement range	Conductivity	0.055μS/cm～199.9mS/cm （Full range measurement, no need to replace electrodes)
	Resistivity	5.00Ω·cm～18.25MΩ·cm
	TDS	0.000 mg/L～100g/L
	salinity	(0.00～8.00)%
	temperature	（-5.0～135.0）℃
Basic error	Conductivity	±0.5%FS
	Resistivity	±0.5%FS
	TDS	±0.5%FS
	salinity	±0.1%
	temperature	±0.3℃
power supply		DC Voltage-regulated power supply (9V DC，800mA， Positive inside and negative outside )
size (mm)，weight (kg)		250×195×100，2

DDSJ-318 Type conductivity meter

Serial number

Name and specifications

quantity

2
3
4
5
6
7
8
9
10
11
12

DDSJ-318 Type conductivity meter

DJS-1D Type conductive electrode (Platinum black )
T-818-B-6 Type temperature electrode
REX-3 Multifunctional electrode holder
General Power Supply (9VDC,800mA, Positive inside and negative outside)
RS232 Communication line
USB Interface connection cable
TP－16Serial printer connection
Thunder magnetic data acquisition disc
AF30 Touch pen
Instructions for use
Product Certificate

1tower

1branch
1branch
1Only
1Only
1root
1root
1root
1open
1branch
1Book
1share

Product Brochure

User Guide

Packing List

Product Sheet
