Product/Brand

Conductivity Meter

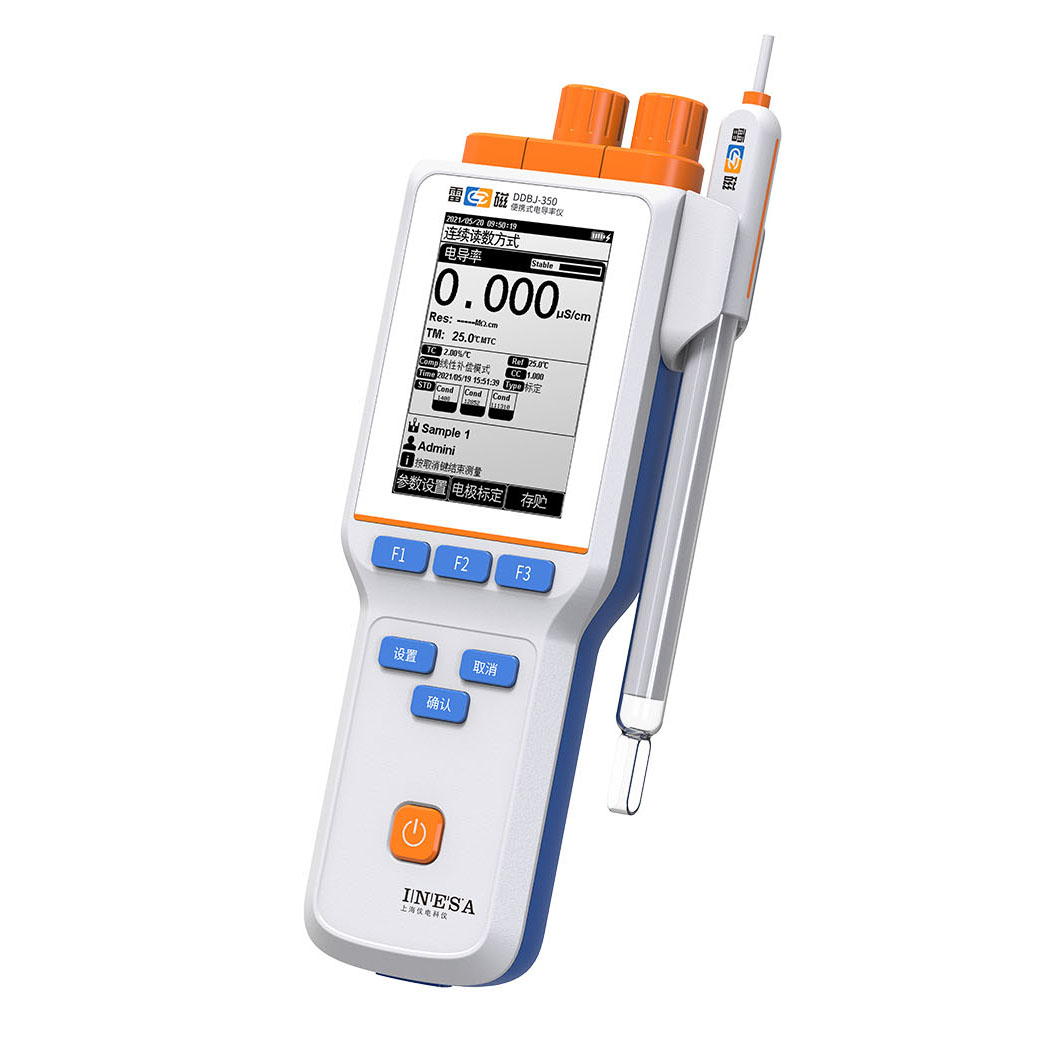

Shanghai Lei Magnetic Portable Conductivity Meter DDBJ-350
Price:¥3280

WeChat

Brand:lei-ci
Model:DDBJ-350
Inventory Status:Spot promotion/please call for consultation
Contact:
Tel:+86 010-51660436
Email:dnyc_sales@163.com
Details Documentation Related

【Main features】

●The instrument can perform conductivity, TDS、 Salinity and temperature measurements;

●LCD display, clear digital, with backlight design;

●It has calibration function, which can be used by users to calibrate electrode constant or TDS Conversion coefficient;

●It has functions such as automatic temperature compensation, automatic calibration and data power-off protection;

●The measurement results can be stored, deleted, and reviewed; Up to 100 sets of conductivity can be stored, TDS and experimental data on salinity measurements;

●Instrument with RS-232 Interface, connectable TP-16 A serial printer prints the current measurement results or stored data; You can also communicate with computers and use our company's supporting data acquisition software to receive current measurement data or store data. ;

●The instrument adopts a low-power design and has power management functions such as undervoltage display and automatic shutdown, which greatly extends the service life of the battery.;

●The chassis protection level is IP65, Waterproof and dust-proof, suitable for outdoor operations.


【Technical parameters]

model

Technical parameters

DDBJ-350

Instrument Level

1.0class

Measurement parameters

Conductivity, TDS、 Salinity, temperature

Measurement range

Conductivity

0.000 μS/cm~199.9 mS/cm

TDS

0.000 mg/L~19.99 g/L

salinity

(0.00~8.00)%

Resistivity5.00Ω.cm-20.00MΩ.cm

temperature

(0.0~40.0) ℃

Basic error

Conductivity

±1.0%(FS)

TDS

±1.0%(FS)

salinity

±0.20%

Resistivity±1.0%(FS)

temperature

±0.3℃

power supply

4Festival AA Alkaline batteries

size( mm), weight( kg)

210×86×50;0.5
