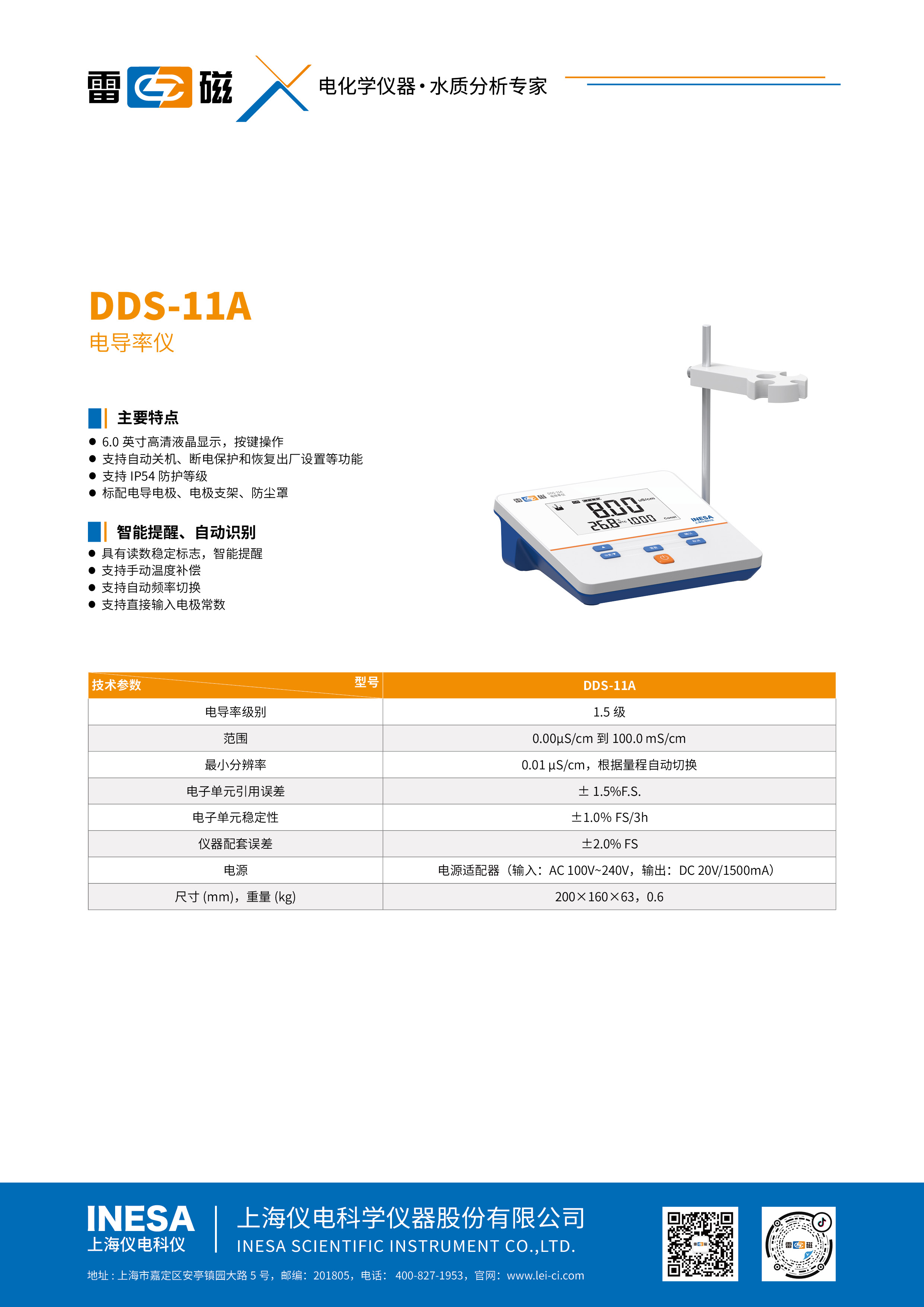

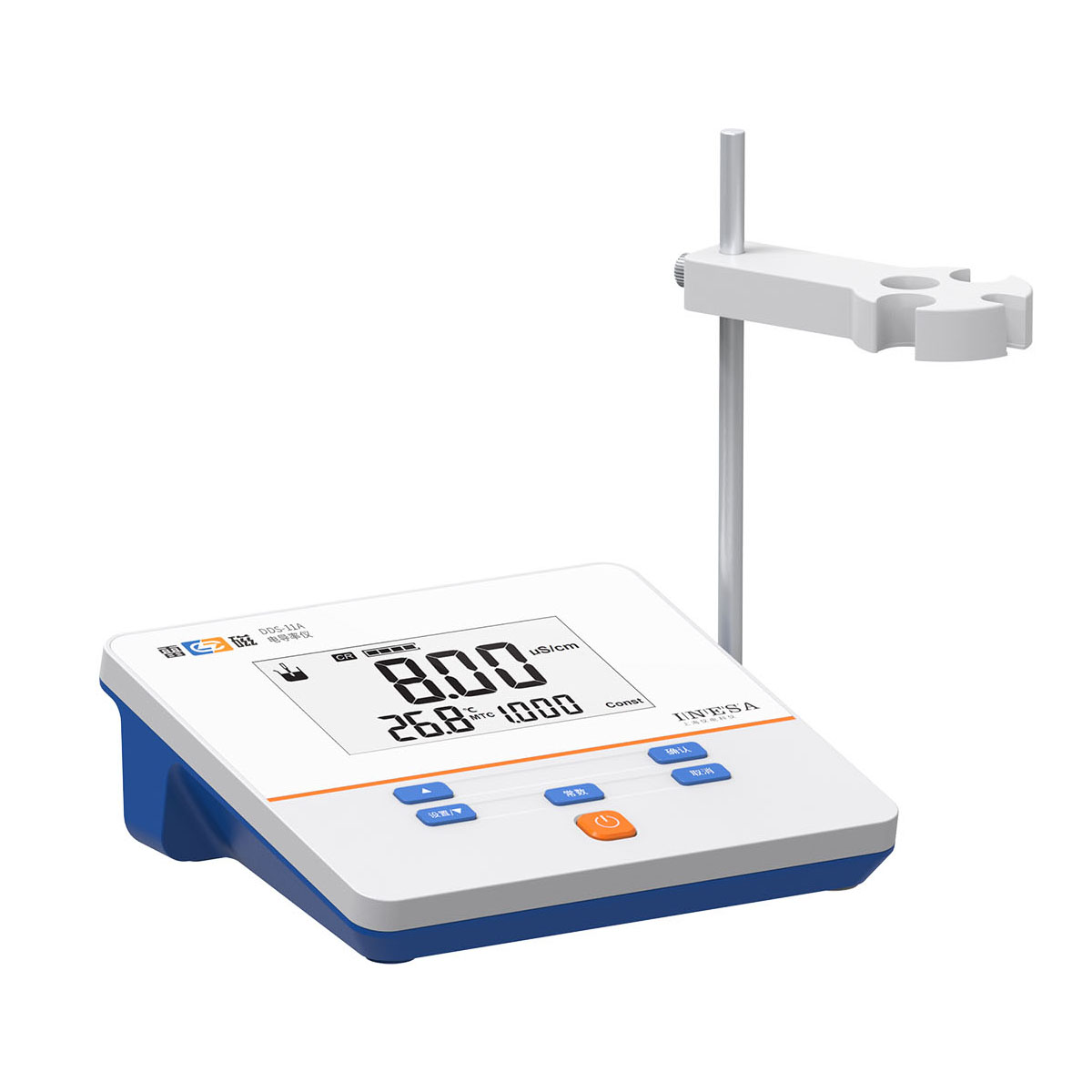

DDS-11A A type of conductivity meter is a laboratory conductivity measurement instrument. It can measure the conductivity of a general liquid, and can also measure high-purity water conductivity. There are 0 instruments ～10mV The signal output can be connected to an automatic electronic potentiometer for continuous recording.

Main technical features:

1、Measurement range: 0 ～105μs/cm（ That is, 0 ～100ms/cm）， Its equivalent resistivity range is ∞-10Ω·cm This range is divided into 12 ranges. Level 1.0, (0 ～20）ms/cm（ Divided into 5 ranges)

2、Basic error: (1) range (i.e. 0-0.1 μs/cm）≤2%，All other ranges ≤±1.5%

3、Signal output: 10 mV±0.5%

4、Working conditions:

　　 ① Ambient temperature: 5 ～40℃

　　 ② Relative environmental humidity: 50 ～85%

　　 ③ Supply voltage: 220 ±10% 50Hz±2%

5、Power consumption: <1.5VA

6、Weight: 2 Kg

7、Dimensions: 222 ×160×75mm3（ long ×Width ×high)
