Product/Brand

pH Meter

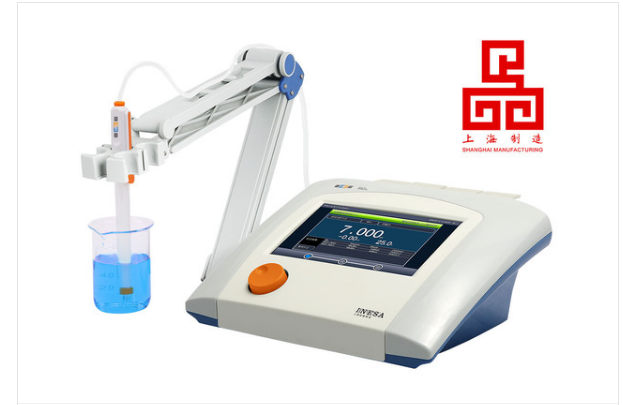

Shanghai Leici Laboratory pH count PHSJ-6L
Price:¥8800

WeChat

Brand:lei-ci
Model:PHSJ-6L
Inventory Status:Spot promotion/please call for consultation
Contact:
Tel:+86 010-51660436
Email:dnyc_sales@163.com
Details Documentation Related

【Main features】

●7Cun color touch screen, navigation operation;

●Supports measurement of potential value, pH Value and temperature value;

●Intelligent operating system with functions such as method management, electrode management, calibration management, data management and user management;

●Supports electrode management, up to 5 can be managed pH Electrodes, each electrode can save 20 sets of correction records; Supports calibration editing function, convenient calibration ;

●3Reading mode: Smart-Read:“ Fast, medium and strict, customize" multiple balance conditions to choose from; Timed-Read: Two timing reading modes: timing termination measurement and timing automatic interval measurement.; Cont-Read: Clearly grasp the continuous change process of the sample;

●Automatic recognition GB、DIN、NIST 25 buffer solutions, allowing users to create their own pH Standard liquid; Supports automatic 1-6 point calibration ; Support manual /Automatic warming;

●Supports storage of up to 100 sets of measurement methods;

●Supports storage of 1,000 sets of measurement results, complies with GLP specification; It has data statistics function, allowing users to count, review, analyze, compare and save measurement results ;

●support USB、RS232 connect PC、 Serial port printer; Allows printout of measurement results ;

●Support Chinese and English languages; Support firmware upgrade, support U Hot plugging of disk; Supports direct connection of automatic sampler.



【Technical parameters]

model

Technical parameters

PHSJ-6L

Instrument Level

0.001class

Measurement parameters

pH value, mV(ORP)、 Temperature value

Measurement range

pH

(-2.000~20.000)pH

mV

(-2000.00~2000.00)mV

temperature

(-5.0~130.0)℃

Resolution

pH

0.001pH

mV

0.01mV

temperature

0.1℃

Electronic unit display error

pH

±0.002pH

mV

±0.03%FS

temperature

±0.1℃

stability

(±0.002pH±1Words) /3h

power supply

Power adapter (input: 100-240 VAC,1.35A; Output: 24 VDC,3A)

size (mm),weight (kg)

280×280×130,2.5



【Main functions】

model

Main functions

PHSJ-6L

Display

7Color touch screen

Temperature compensation

Manual /automatic( -5.0~105.0)℃

Calibration method

One point, two point or multiple point calibration (up to 6 points)

Data storage

1000set

Data interface

RS-232

USB

Connect the printer

GLP specification

Connect to a computer

Automatic sampler

Firmware upgrade

PHSJ-6L type pH count

Serial number

Name and specifications

quantity

1

2

3

4

5

6

7

8

9

10

PHSJ-6L type pH count

E-201-L Type composite electrode

T-818-L Type temperature electrode


GM65-240270 AC/DC Power adapter

REX-3 Type electrode bracket (with base)

USB Communication connection

Three-core power cord (Standard universal )

Product Instructions

Product Certificate

1tower

1branch

1branch


1Only

1set

1root

1root

1Book

1Book
