RUYAMATO Vacuum drying box DPHH43C/63C
Price：Discuss personally
Laboratory/Medical Field
Integrated suppliers of equipment, reagents, and consumables
Instrument introduction:
Usage overview:
This product is suitable for heat treatment in vacuum state such as defoaming, dehydration, hardening and washing treatment in electronic product production process. It is widely used in lithium-ion batteries, LED Vacuum drying treatment of electronic product production processes such as photoelectric components and crystal oscillators.
Features:
● The studio is made of stainless steel plates to ensure the product is durable and easy to clean.
● The rectangular vacuum chamber maximizes the effective volume and makes full use of the space.
● The elastic double-layer tempered glass door is clearly visible when observing the objects in the studio.
● The box door is closed and tight and adjustable, and the integrally formed synthetic silicone rubber door seal ensures high vacuum in the box.
● An extra temperature protection temperature control port is added to effectively prevent safety issues such as temperature loss. (Optional)
● Each layer of the box can be independently heated, vacuumed, and nitrogen-injected independently without interfering with each other. (Multiple box series)
● Low noise imported vacuum pump, stable and reliable vacuum control. (bring“ B” It is an imported vacuum pump)
◆ Program Control
● Program-controlled operations can set heating, vacuum holding and nitrogen holding times according to process requirements to ensure consistency in baking per batch and minimize the baking difference of products.
Technical parameters:

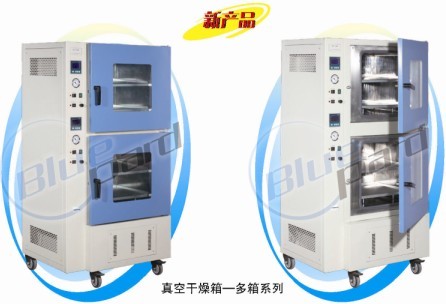

model | Multi-box vacuum drying box | ||
BPZ-6090-2 BPZ-6090-2B （Two boxes) | BPZ-6210-2 BPZ-6210-2B （Two boxes) | BPZ-6140-3 BPZ-6140-3B （Three boxes) | |
Power supply voltage | AC220V 50HZ | AC380V 50HZ | |
Input power | 2300W | 3200W | 2100W |
Temperature control range | RT+10～200℃ | ||
Temperature resolution /Volatility | 0.1℃ /±1℃ | ||
Reaching vacuum | 133Pa | ||
Vacuum meter | Mechanical pointer type | ||
Working ambient temperature | ＋5～40℃ | ||
Inner liner size (mm)W×D×H | 450×450×450（Single layer) | 560×600×640（Single layer) | 700×530×380（Single layer) |
External dimensions (mm)W×D×H | 900×700×1750 | 1140×795×1907 | 1300×800×1953 |
shelf | 2piece (Independent temperature control )×2 | 3piece (Independent temperature control )×2 | 2piece (Independent temperature control )×3 |
Studio Materials | Stainless steel (1Cr～18Ni9Ti) | ||
Vacuum meter | Imported vacuum meter | ||
model | Program LCD controller | Program LCD controller | ||||
BPZ-6933B | BPZ-6503B | BPZ-6213 BPZ-6213B | BPZ-6123 BPZ-6123B | BPZ-6063 BPZ-6063B | BPZ-6033 BPZ-6033B | |
Power supply voltage | AC380V 50HZ | AC220V 50HZ | AC220V 50HZ | |||
Input power | 8600W | 3600W | 2060W | 2400W | 1770W | 1020W |
Temperature control range | RT+10～200℃ | |||||
Temperature resolution /Volatility | 0.1℃ /±1℃ | |||||
Reaching vacuum | 133Pa | |||||
Vacuum meter | Mechanical pointer type | |||||
Working ambient temperature | ＋5～40℃ | |||||
Inner liner size (mm)W×D×H | 750×1160 ×1050 | 630×810 ×845 | 560×600 ×640 | 500×500 ×500 | 400×400 ×400 | 320×320 ×320 |
External dimensions (mm)W×D×H | 1150×1395 ×2010 | 790×1030 ×1855 | 720×820 ×1750 | 660×640 ×1400 | 600×570 ×1390 | 550×490 ×1240 |
shelf | 5piece (Independent temperature control ) | 4piece (Independent temperature control ) | 3piece (Independent temperature control ) | 4piece | 3piece | 2piece |
Studio Materials | Stainless steel (1Cr～18Ni9Ti) | |||||
Vacuum meter | Imported vacuum meter | |||||
◆Performance parameter test under no load conditions is: ambient temperature 20 ℃，Ambient humidity 50% RH
Optional purchase: (Increase the delivery time of optional parts for 7 days )
1、Inert gas intake valve |
2、Lower box cabinet |
3、Liquid water filter (Pricing according to specifications and models, suitable for high humidity drying ) |
4、Drying tank |
5、Optional exhaust gas oil and dust filter device (It is recommended to replace it once every 6 months) |
Note:
1、bring“ B” It is an imported vacuum pump.
2、BPZ Series vacuum drying box with vacuum pump and drying tank
3、BPZ-6503B、BPZ-6090-2/2B(Two boxes )、BPZ-6210-2/2B(Two boxes )After receiving the order, the delivery time is 25 days
4、BPZ-6933B、BPZ-6140-3/3B(Three boxes )After receiving the order, the delivery time is 30 days
