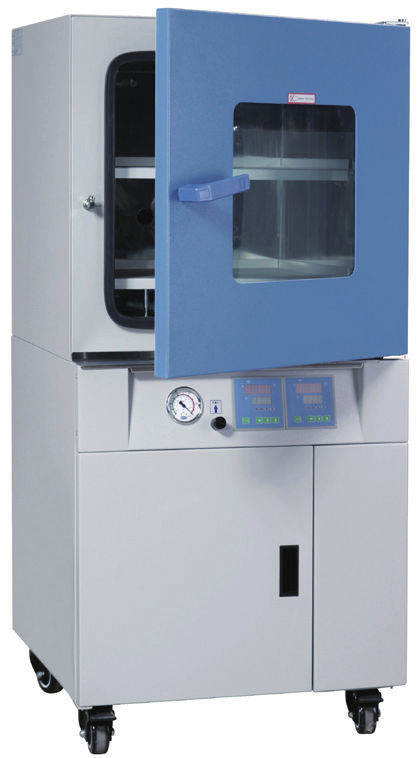

The new generation of vacuum drying chambers combines the company's many years of successful experience in box heating. Through continuous research, it breaks through traditional technology to creatively solve the "bottleneck" in the heat conduction process - find the perfect heat conduction method.

Usage overview:

The vacuum drying box is designed for drying heat-sensitive, easy to decompose and oxidize substances. It can fill the inside with inert gas, especially some items with complex compositions can also be quickly dried.

Features:

● The rectangular studio enables maximum effective volume, and the microcomputer temperature controller is accurate and reliable.

● Tempered and bulletproof double-layer glass doors observe the objects in the studio, and can be filled with inert gas.

● The box door is closed and tight and adjustable, and the integrally formed synthetic silicon door seal ensures that the box has a high vacuum.

● The studio is made of stainless steel plate material, ensuring the product is durable and easy to clean.

● Storage, heating, testing and drying can be carried out in an environment without oxygen or filled with inert gas without causing oxidation.

Direct heating and control of partitions

● Each partition has a separate temperature sensor, and the individual control circuit has an accurate response to the drying of different loads. Each shelf used can be independently displayed and controlled in setting, monitoring temperature and timing.； The heating element is directly placed under the shelf, so there will be no temperature deviation, more accurate measurement and more stable temperature control ； Heating and operating time is 50 shorter than the heating heating time of the inner liner with a bundled heating system ％above.

Technical parameters

Performance parameter test under no load conditions is: ambient temperature 20 ℃，Ambient humidity 50% RH

Note:

1、Standard vacuum pump and drying tank

2、According to user needs, the temperature control range of the product can be expanded to RT+10～250℃，or RT+10～100℃，The delivery time is 15 days, and the fee is charged 15% based on the market price

3、DZF-6500， After receiving the order, the delivery time is 25 days； DZF-6930， After receiving the order, the delivery time is 30 days

4、Custom 300 ℃Vacuum drying box can only be used for shelf heating, with a delivery time of 20 days, and a 20% fee for market price
