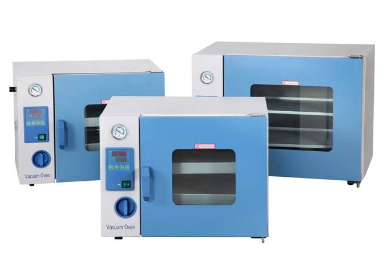

Shanghai Yiheng Vacuum Dryer Box DZF-6034 For chemical_Vacuum Drying Oven

Vacuum Drying Oven

Shanghai Yiheng Vacuum Dryer Box DZF-6034 For chemical

Price：￥9230

WeChat

Brand：yiheng
Model：DZF-6034 For chemical
Inventory Status：Spot promotion/please call for consultation

Contact：: Tel：+86 010-51660436
Email：dnyc_sales@163.com

Details Documentation Related

The new generation of vacuum drying chambers combines the company's many years of successful experience in box heating. Through continuous research, it breaks through traditional technology to creatively solve the "bottleneck" in the heat conduction process - find the perfect heat conduction method.

Usage overview:

The vacuum drying box is designed for drying heat-sensitive, easy to decompose and oxidize substances. It can fill the inside with inert gas, especially some items with complex compositions can also be quickly dried.

Features:

● The rectangular workroom enables maximum effective volume, microcomputer temperature controller, accurate and reliable temperature control, and reduces drying time by more than 40% compared with traditional vacuum boxes.

● Tempered and bulletproof double-layer glass doors observe the objects in the studio, and can be filled with inert gas.

● The box door is closed and tight and adjustable, and the integrally formed synthetic silicon door seal ensures that the box has a high vacuum.

● The studio is made of stainless steel plate material, ensuring the product is durable and easy to clean.

● Storage, heating, testing and drying can be carried out in an environment without oxygen or filled with inert gas without causing oxidation.

Technical parameters

model	Desktop 90 L the following
	DZF-6050 DZF-6053 DZF-6055		DZF-6020 DZF-6022	DZF-6021 DZF-6051	Specialty for chemistry DZF-6030A DZF-6032 DZF-6034	Biologically dedicated DZF-6030B DZF-6050B
Power supply voltage	AC220V 50HZ
Input power	1450W				550W/850W	300W/650W
Temperature control range	RT+10～200℃					RT+10～65℃
Temperature resolution /Volatility	0.1℃ / ±1℃
Reaching vacuum	133Pa
Vacuum meter	Mechanical pointer type
Working ambient temperature	＋5～40℃
Inner liner size ( mm)W×D×H	415×370×345	300×300×275		300×300×275 415×370×345	320×320×300		320×320×300 415×370×345
Dimensions ( mm)W×D×H	730×560×550	605×490×450		605×490×450 730×560×550	630×510×490		610×510×490 710×560×550
shelf	2piece /3piece /5piece	1piece /2piece			1piece /2piece /4piece	1piece /2piece
Studio Materials	Stainless Steel 304 (1Cr～18Ni9Ti)			Cold rolled plate (08F)	Stainless steel 316 (OCr17Ni12Mo2	Stainless Steel 304 (1Cr～18Ni9Ti)

model	Desktop 90 L above
model	DZF-6213	DZF-6123	DZF-6092 DZF-6095
Power supply voltage	AC220V 50HZ
Input power	2100W	1600W	1150W
Temperature control range	RT+10～200℃
Temperature resolution /Volatility	0.1℃ / ±1℃
Reaching vacuum	133Pa
Vacuum meter	Imported vacuum meter /Mechanical pointer type
Working ambient temperature	＋5～40℃
Inner liner size ( mm)W×D×H	600×600×600	500×500×500	450×450×450
Dimensions ( mm)W×D×H	890×760×741	790×660×641	740×610×591
shelf	3piece (Independent temperature control )	3piece (Independent temperature control )	2piece /5piece
Studio Materials	Stainless Steel 304 (1Cr～18Ni9Ti)

Performance parameter test under no load conditions is: ambient temperature 20 ℃，Ambient humidity 50% RH

Note:

1、Desktop series with air intake valve control (no vacuum pump standard)

2、6050、6053、6051、6050B、6032、6022 The heating method for other models is the bundled inner liner, and the rest of the products adopt shelf heating method.

Optional parts: (Add to 7 days for optional parts delivery)

1、Intelligent program LCD temperature controller

2、Inert gas intake valve

3、Imported vacuum meter

4、Lower box cabinet

5、Liquid water filter (Pricing according to specifications and models, suitable for high humidity drying )

6、Drying tank

7、import Vacuumer VOP-100/200

8、Optional exhaust gas oil and dust filter device (It is recommended to replace it once every 6 months)

9、Optional shelf

10、Domestic vacuum pump 2 XZ-2

11、Domestic vacuum pump 2 XZ-4
