Shanghai Yiheng Blow Drying Box DHG-9425A_Forced-Air Drying Oven

Forced-Air Drying Oven

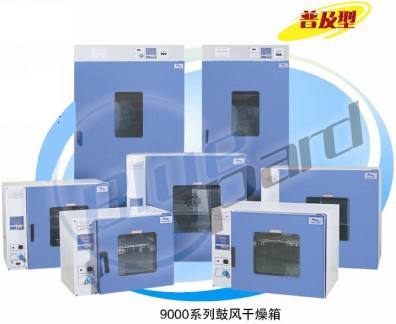

Shanghai Yiheng Blow Drying Box DHG-9425A

Price：￥19800

WeChat

Brand：yiheng
Model：DHG-9425A
Inventory Status：Spot promotion/please call for consultation

Contact：: Tel：+86 010-51660436
Email：dnyc_sales@163.com

Details Documentation Related

Instrument introduction:

Products produced using advanced laser and CNC processing equipment； It is used for drying, baking and sterilizing waxes and sterilization by industrial and mining enterprises, laboratories, scientific research institutions.

Features:

● The inside of the box is made of mirror stainless steel argon arc welding, and the outside of the box is made of high-quality steel plates, which are beautiful and novel in shape.

● Adopt microcomputer with overtemperature deviation protection and digital display P.I.D Temperature controller with timing function, accurate and reliable temperature control.

● The hot air circulation system consists of a fan that can operate continuously at high temperatures and a suitable air duct to improve the uniformity of the temperature in the work room.

● The new synthetic silicon sealing strip is used to operate at high temperatures for a long time, have a long service life, and is easy to replace.

● The intake and exhaust volume in the box can be adjusted from the temperature control panel.

● Independent temperature limit alarm system, the temperature exceeds the limit will be automatically interrupted, ensuring safe operation of the experiment without accidents. (Optional)

● Can be equipped with a printer or RS485 Interface, used to connect to a printer or computer, can record changes in temperature parameters. (Optional)

Technical parameters: 9000 series

model	DHG-9030(A) (101-0)	DHG-9070(A) (101-1)	DHG-9140(A) (101-2)	DHG-9240(A) (101-3)	DHG-9420A (101-4)	DHG-9620A	DHG-9920A
Power supply voltage	AC220V 50HZ				AC380V 50HZ
Temperature control range	RT+10～200℃/ RT+10～250℃（Order instructions required)
Constant temperature fluctuation	±1.0℃
Temperature resolution	0.1℃
Temperature uniformity	±3%（Test point is 100 ℃）
Working ambient temperature	+5～40℃
Input power	850W	1550W	2050W	2450W	3100W	4000W	5200W
Volume	30L	80L	136L	220L	420L	620L	1000L
Inner liner size ( mm）W×D×H	340×320 ×320	450×400 ×450	550×450 ×550	600×500 ×750	640×585 ×1355	840×600 ×1355	1000×600 ×1600
Dimensions ( mm）W×D×H	620×440 ×490	740×530 ×630	840×580 ×730	880×630 ×930	780×730 ×1780	980×800 ×1880	1140×800 ×2150
Carriage bracket （Standard)	2piece				3piece	4piece
Timing range	1~5999min

model	DHG-9015A DHG-9035A	DHG-9055A	DHG-9075A	DHG-9145A	DHG-9245A	DHG-9425A	DHG-9625A
Power supply voltage	AC220V 50HZ					AC380V 50HZ
Temperature control range	RT+10～300℃
Constant temperature fluctuation	±1.0℃
Temperature resolution	0.1℃
Temperature uniformity	±3%（Test point is 100 ℃）
Working ambient temperature	+5～40℃
Input power	850W	1100W	1550W	2050W	2450W	3100W	4000W
Volume	16/30L	50L	80L	136L	220L	420L	620L
Inner liner size ( mm）W×D×H	250×260 ×250 340×320 ×320	420×395 ×350	450×400 ×450	550×450 ×550	600×500 ×750	640×585 ×1355	840×600 ×1355
Dimensions ( mm）W×D×H	530×370 ×420 620×440 ×490	720×530 ×520	740×530 ×630	840×580 ×730	880×630 ×930	780×730 ×1780	980×800 ×1880
Carriage bracket （Standard)	2piece					3piece	4piece
Timing range	1~5999min
