Range of use:

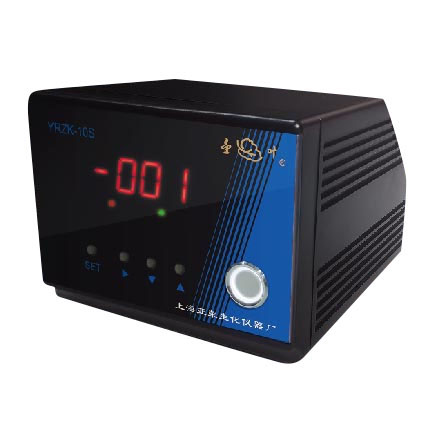

YRZK-10S Vacuum controllers are widely used and are practical for rotary evaporators, vacuum reactors and equipment that require vacuum experiments. This product mainly controls the vacuum degree and selects the vacuum degree based on the boiling point of different materials, and evaporates and recovers efficiently and stably at the ideal boiling point. Effectively eliminate waste of raw materials and energy.

Technical parameters:

Power supply: 220 V 50HZ

Control range: -0.01-0.09 Mpa

Measurement accuracy: 0.2%-0.5%

Output signal: 4-120 MA or ~5VDC

Overload capacity: less than 1.5 times the amount of quantity

Temperature drift: 0.03% FS/℃

Media temperature: -20 ~75℃

Ambient temperature: -30 ~80℃

Working status: continuous

Features:

This product uses a high-performance voltage-sensitive chip, combined with advanced circuits and temperature compensation technology to convert pressure into reverse linear current or voltage signals. The product is small in size, simple in operation and strong practicality.
