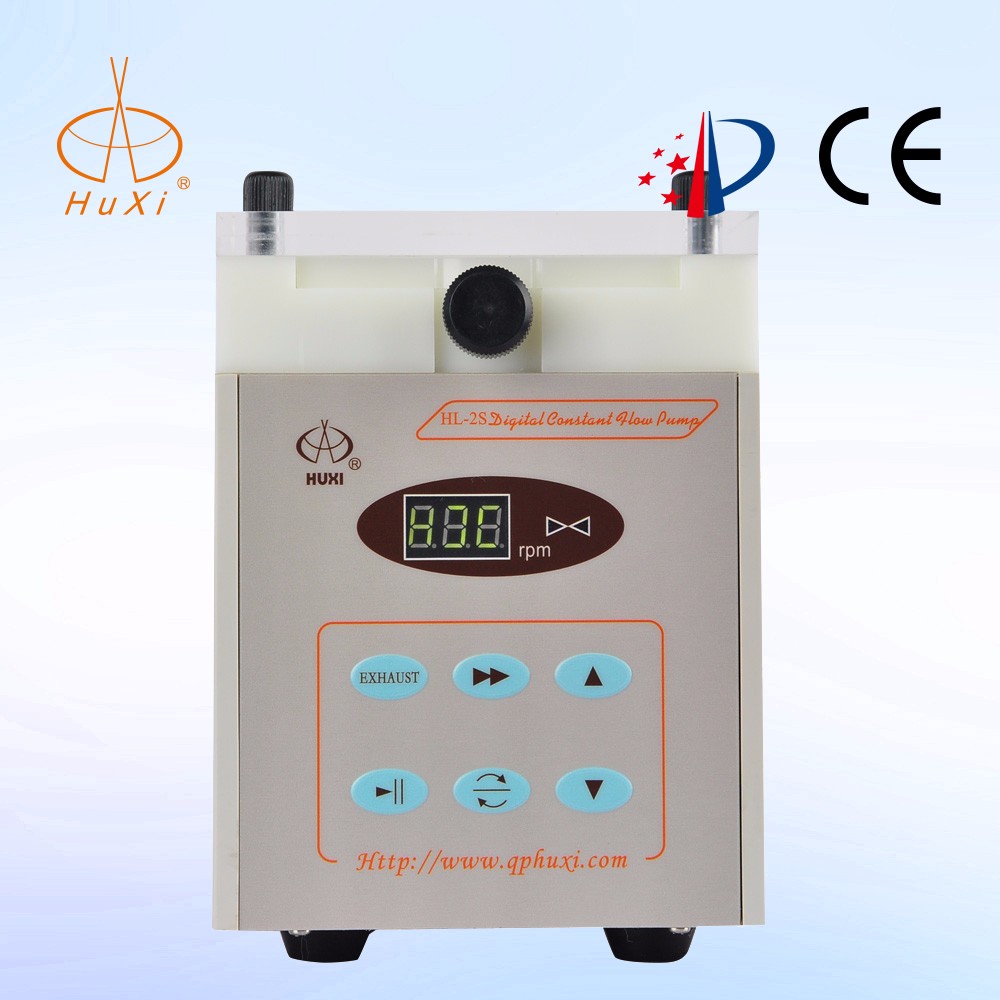

Shanghai Jiapeng Hengfluid Pump HL-2
Price:¥2880

Product Description
1、HL-2S Constant flow pump experimental type (digital explicit organic resistance), adopts integrated mold opening ABS Engineering plastic shell design, HL Series constant flow pumps have front and reverse
2、Basic functions such as start and stop, full speed (cleaning), speed regulation, etc. are suitable for biological, environmental and other fields. Peristaltic pump for non-corrosive liquids, accurate error: ≦±2%。
Product Features
1、Experimental constant flow pump.
2、The experimental pump head of the constant flow pump is convenient for hose installation.
3、It is equipped with a digital tube speed display, and the speed is intuitive and clear.
4、PC Film buttons, easy to operate.
5、It uses microcontroller control and Wuji speed regulation.
6、Low noise, stable operation and easy operation.
7、High accuracy of liquid output, up to 2%
8、Internal wide voltage design, suitable for complex power supply environments.
9、It adopts an organic-resistant pump head to prevent organic solvent from corroding the pump head.
Application areas:
1)Water and wastewater treatment
2)Extract liquid in environmental experiments
3)Food experiments
4)Bioengineering experiments
5)Separation chromatography experiment
Technical parameters
model | HL-2S( Digitally explicit organic resistant pump head) |
Output flow | 2×(0.5-600)ml/h |
Output channel | Dual channel |
Pump head model | HL2S |
Hose specifications | 13#16# |
Functional Mode | PC Film button speed regulation |
Speed range | 0-50change /minute |
Speed accuracy | 0.1change /minute |
Output pressure | ≧3kg/c㎡ |
Accurate error | 2% |
External control interface | 5V( Can be used with our factory in Shanghai West) |
Working ambient temperature | Temperature 0-40 ℃,humidity ≦85% |
Current voltage | Wide voltage supports 110 /220AV50HZ |
Vibration resistance | 10-500HZ |
External dimensions | 120*120*180mm |
weight | 2.8KG |
