Shanghai Jiapeng Hengfluid Pump HL-2
Price:¥2880

Product Introduction

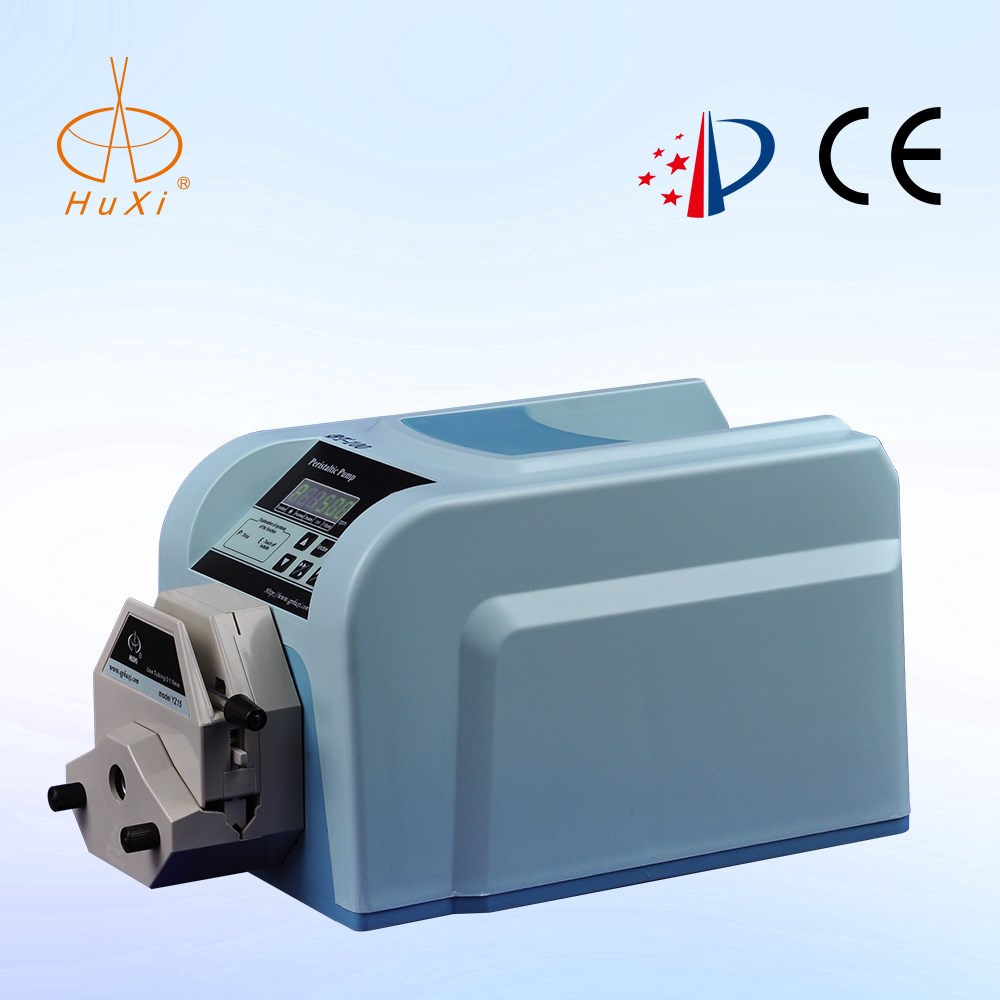

BT-100 New easy-to-install peristaltic pump, adopts integrated mold opening ABS Engineering plastic shell design, BT Series peristaltic pumps have front and reverse, start and stop, full speed (cleaning)
Basic functions such as speed regulation are suitable for biology, environment and other fields. Peristaltic pump for non-corrosive liquids, accurate error: ≦±2%。
Functional Features
•New easy-to-install peristaltic pump with 8-position LED Digital tube display.
•The peristaltic pump is easy to install the pump head, which is easy to install the hose.
•BT The type peristaltic pump has basic functions such as forward and reverse, start and stop, full speed, and speed regulation.
•Driver housing ABS Engineered plastic press grinding design is exquisite and beautiful.
•Internal wide voltage design, suitable for complex power supply environments.
•Replaceable pump head, suitable for different flow requirements.
Application areas:
•Water and wastewater treatment
•Extract liquid in environmental experiments
•Food experiments
•Bioengineering experiments
•Separation chromatography experiment
Technical Specifications
model | BT-100 | |
Output flow | 0.016-148ml/min | |
Output channel | Single channel | |
Pump head model | YZ15 | |
Hose specifications | 12#14#17#19# | |
Timely operation | none | |
Sleep regularly | none | |
Communication mode | none | |
Speed range | 0-150change /minute | |
Output pressure | ≧3kg/c㎡ | |
Accurate error | ≦±2% | |
External control interface | 5V( Can be used with our factory in Shanghai West) | |
Working ambient temperature | Temperature 0-40 ℃,humidity ≦85% | |
Current voltage | 85-264VAC | |
Vibration resistance | 10-500HZ | |
External dimensions | 310*160*160mm | |
weight | 2.5KG | |
