Shanghai Jiapeng Hengfluid Pump HL-2
Price:¥2880

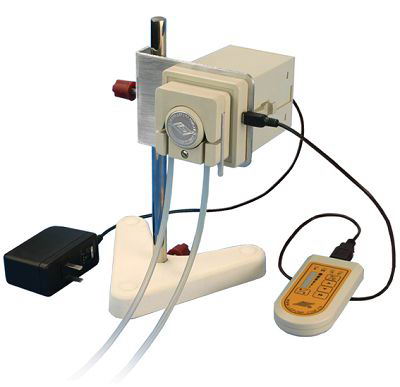

BQ50-1J The peristaltic pump is compact and exquisite, can be embedded and installed or fixed to the bracket. Can provide 0.0002-20 ( ml/min) Range flow. The rotation speed can be adjusted by hand-held controller, or through an analog external control interface or RS485 The communication interface performs external control. This pump is available in black and white.
"Speed range: 1 ~50.0rpm, Reversible forward and reverse
Speed resolution: 1 rpm (External control 0.1 rpm)
Speed regulation method: external handheld controller adjustment
Display mode: Handheld controller speed range indication and operating status indication
Communication interface: RS485
External control interface: start and stop control, direction control, speed control
(0~5V、0~10V、4~20mA、0~10KHz Optional)
Power consumption <10W
Working environment: Temperature 0 ~40℃, Relative humidity < 80%
Drive size (L×W×H) 135×72×72(mm)
Handheld controller size (L×W×H) 105×50×16(mm)
Drive weight: 0.5 Kg
Protection level: IP31 "
"Applicable pump head: WX10
With filling and emptiation functions (full speed)
Power-down memory function: After power-up is re-activated, work according to the status of the last power-down.
Small size and light weight
Can be embedded on the work panel or mounted on the bracket
Handheld controller is flexible and easy to operate
Can be controlled through external control interface
have RS485 Communication function
Suitable for making OEM product
Not suitable for outdoor use "
Technical parameters:
Drive | Applicable pump head | Suitable hoses | Hose pressure bearing | Reference flow ( ml/min) | Number of channels | weight (kg) |
BQ50-1J | WX10 | Wall thickness: 0.8 ~1.0mm Inner diameter ≤3.17mm | 0.1/0.1 | 0.0002~20 | 1 | 0.5 |
