Product Introduction

When conducting liquid column chromatography analysis in scientific research, medical care, universities, factories, mining and laboratories and other relevant departments, this instrument can automatically collect chromatography liquid in components, thereby replacing manual operation and improving work efficiency.

This instrument can be produced by our company HL Series constant flow pumps, TH The series of gradient mixers are used in combination and can also be used separately.

Features

1、  How to run

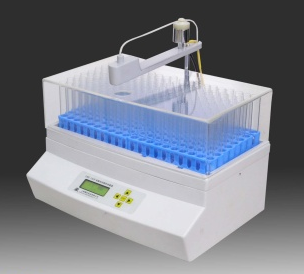

The shape of this instrument is square, and the movement mode is horizontal pipe change and longitudinal pipe change. It is not convenient for the circular collector to record, pipe adjustment, pipe extraction, etc.

2、  Operation display

The LCD Chinese menu display is used, which is simple and intuitive to operate, and changes the cumbersome and unclear operation display of the digital tube.

In particular, the menu-style operation makes the operation as convenient as using a mobile phone. Instant working situations can be observed at any time during operation.

3、  In addition to the usual timing collection method, this instrument also has

Drop counting method: Use the number of liquid drops collected to record and convert the collected capacity.

Technical parameters

1、Use environment conditions: Temperature 0 ℃- +40℃ ，Relative humidity 80%

2、Capacity: 12 ml 160 test tubes. (1920ml)

3、Timed collection range: 1 second to 24 hours

4、Collecting range of drops: 1-9999 drops

5、LCD Chinese menu display

6、Attached with an external constant flow pump socket

7、Continuous working hours: 160 days.

8、Working power supply: AC220V±10%  50HZ

9、Power consumption: 20 W

10、Weight: 9 Kg

11、Dimensions: 260 ×250×340（mm）
