1. Product introduction

   When conducting liquid column chromatography analysis in scientific research, medical care, universities, factories, mining and laboratories and other relevant departments, this instrument can automatically collect chromatography liquid in components, thereby replacing manual operation and improving work efficiency. This instrument can be produced by our company HL Series constant flow pumps, TH The series of gradient mixers are used in combination and can also be used separately.

2. Features

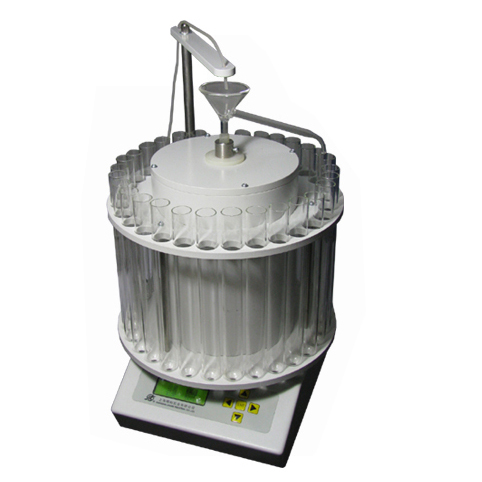

1.Operation mode: The shape of this instrument is circular,
2.Operation display: The LCD Chinese menu display is used, which is simple and intuitive, changing the cumbersome and unclear operation display of the digital tube. In particular, the menu-style operation makes the operation as convenient as using a mobile phone. Instant working situations can be observed at any time during operation.
3.Various ways to use: 30 can be installed ml Test tubes can also be installed with 30 funnels, unlimited collection

3. Main technical indicators

1. Use environment conditions: Temperature 0 ℃- +40℃ ，Relative humidity 80%

2. Capacity: 40  ml 30 test tubes (1200 ml)；30Funnel, unlimited collection

3. Timed collection range: 1 second to 24 hours
4. Attached with an external constant flow pump socket
5. Continuous working hours: 160 days.

6. Working power supply: AC220V±10%  50HZ

7. Power consumption: 20 W

8. Weight: 9 Kg

9. Appearance Dimension: Working disk: φ260×260high( mm）

                         Control box: 200 ×260×100high

4. Preparation
1. Support rod installation: Fix the vertical rod to the disc, install the cross rod on the vertical rod, and install the large funnel in the center of the disc.
2. Test tube placement: You can choose to use test tubes. A small funnel can also be installed. When using the funnel, an extension tube can be used to guide the collection liquid to your own container.
3．Key function: There are a total of“ ←、→、↑、↓、SET” Five keys,“ ←、→”The key is a shift key, which acts to move each function
