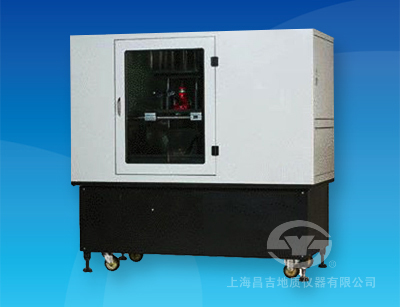

This instrument is based on the industry standards of the People's Republic of China JTG E20-2011《 In the test procedures for asphalt and asphalt mixtures for highway engineering T0719-2011《 Designed and manufactured as required by the Asphalt Mixture Rutting Test, suitable for determining the high temperature of asphalt mixture (Immersed or non-watered )Rutting resistance, high temperature for asphalt mixture ratio design (Immersed or non-watered )Stability inspection can also be used for on-site asphalt mixture high-temperature stability test.

1. Main technical characteristics

1、This instrument is a floor-standing structure, adopts laptop control technology, and uses temperature control PWM Modulation mode control, and at the same time: ⑴The temperature of water in the water tank is tested； ⑵Ambient temperature in the constant temperature box.

2、The constant temperature box adopts external circulation heating method, with uniform temperature field and high temperature stability to ensure no overshoot.

3、During the test, the time and displacement, time and temperature change curves are displayed at the same time, which is a special basis for practical research institutions that study the rut characteristics of asphalt mixtures.

4、The temperature is collected by absolute temperature sensors, and there is no temperature drift for a long time (eliminating the impact of long-term temperature drift of general thermal power corner temperature sensors on experimental data).

5、It adopts pneumatic loading method, which is easy to operate and accurate loading pressure.

6、This instrument is a single-wheel, scientific research rutting tester, and can be used to test the mold soaked or non-soaked rutting test at the same time.

2. Main technical indicators and parameters

① Main technical indicators

⑴ Crushing speed of test wheel: 42 ±1Second-rate /Minutes (one way)

⑵ Test cart movement distance: (230 ±10）mm

⑶ Rubber hardness of test wheel: 78 ±2（60℃，International standard hardness)

⑷ Contact pressure between the test wheel and the test mold: (0.7 ±0.05）Mpa（60℃), adjustable range 0.5 ～1.2（Mpa）

⑸ Test piece temperature: 60 ℃±0.5℃

⑹ Temperature measurement accuracy:                     ±0.1℃

⑻ Displacement measurement accuracy:                    ±0.01mm

⑼ Control range of constant temperature box: (40 ～80）℃（Can be set at will), control accuracy ±1℃

② Main technical parameters

⑴ Working methods: water immersion test and non-water immersion test

⑵ Test mold size: 300 mm×300mm×50mm（ standard)

              Available for 30 ～100mm Thick test pieces for rut test

⑶ Number of temperature measurement channels: 2 channels

⑷ Test time: 60 ～240（min）

⑸ Number of test pieces that can be made at the same time: 1

⑹ Number of test pieces for health preservation: 3

⑺ Crushing motion method: Test rotation

⑻ Overall machine size: 1520 mm×770mm×1510mm（ long ×Width ×high)

⑼ The weight of the whole machine: 350 kg

⑽ Working power supply:                            AC380V、50Hz，10A， Three-phase four-wire system with neutral wire
