This instrument is in accordance with the standards of the Ministry of Transport of the People's Republic of China JTG E20-2011《 In the test procedures for asphalt and asphalt mixtures for highway engineering T0751-1993《 Designed and manufactured as required by the Emulsified Asphalt Slurry Seal Mixture Consistency Test. It is suitable for determining the consistency of the emulsified asphalt slurry sealing mixture, to check the paving and ease of the emulsified asphalt slurry sealing mixture, to determine the appropriate amount of water in the mix design of the emulsified asphalt slurry sealing mixture.

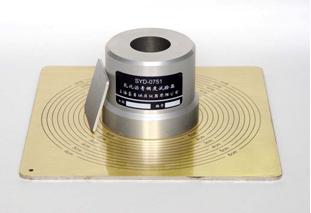

1. Main technical characteristics
1、Composed of frustocone, pad plate and base plate, simple structure；
2、The frustocone is made of aluminum alloy, beautiful and elegant；
3、The base plate is made of stainless steel, durable and has scales for easy reading.

2. Main technical parameters and indicators
1、Metal frustocone: upper diameter 38 ㎜、Lower caliber 89 ㎜、High 76 ㎜ ；
2、Metal base plate: 4 thick ㎜  With concentric circle ticks, spacing 0.5 ㎝。
3、Dimensions: 235 ㎜×235㎜×80㎜（long ×Width ×high).

3. Optional accessories
1、Balance: Weighing 1000 g， The sense amount is not greater than 1 g。
