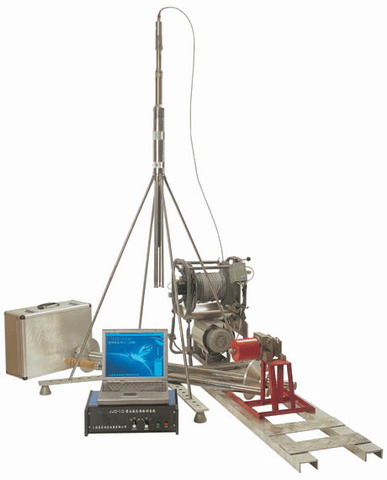

This system is mainly used for hole formation quality inspection of drilling piles. The complete set of equipment includes measurement probes for well diameter, sediment, verticality, and main components such as winches, cables, wellhead pulleys. The host uses a laptop and a portable printer. During detection, various detection data and curves can be displayed in real time, and these data can be stored and printed out. It can easily prepare inspection quick reports and hole-forming quality inspection reports, and the storage and processing of data are convenient and fast, which can greatly improve work efficiency and quality.

1. Main technical characteristics
1、Using computer technology and supporting special software, various detection data and curves are displayed in real time, and quickly drawn into hole quality inspection reports.
2、Accurate test, easy to use, and high work efficiency.
3、Over the past ten years of production, it has been widely used in major projects across the country and sold overseas, and has been well received.

2. Main technical indicators and parameters
1、Pore ​​size measurement range:
  Standard configuration:   F500mm～F1600mm （JJY-2 type).
  User selection configuration: A、 In standard configuration, measuring leg mount 200 mm Extended legs, measuring range can be extended to 2000 mm；
 B、 F1500mm～F2500mm （JJY-5 type)；
 C、 Select configuration in user B Next, measure the leg installation 770 mm Extended legs, measuring range can be extended to 2800 mm。
2、Ore size measurement error:   ±15mm（JJY-2 type)；
  ±25mm（JJY-5 type).
3、The power supply current of the well diameter meter: 10 mA。
4、Well diameter instrument sensitivity:   ≥100mV/10cm （ Supply current 10 mA hour).
5、Cable length: 100 m（ Up to 125 m）。
6、Cable tension: 0.35 t （ Tension break force 0.65 t）。
7、Standard formats for quick reports and inspection reports are available for selection.
8、The laptop has a large capacity and can meet various requirements for storing data.
Note: (1) Standard formats for quick reports and inspection reports are available for selection.
（2）Bring your own laptop.
