Shanghai Changji Needle Insert Tester SYD-2801E1_Petroleum Product Testers

Petroleum Product Testers

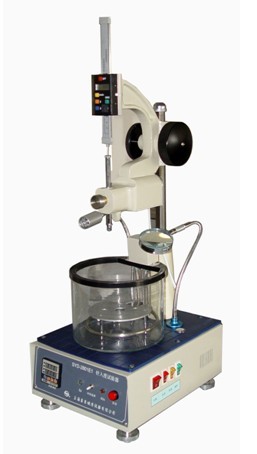

Shanghai Changji Needle Insert Tester SYD-2801E1

Price：Discuss personally

WeChat

Brand：CHANGJI
Model：SYD-2801E1
Inventory Status：Spot promotion/please call for consultation

Contact：: Tel：+86 010-51660436
Email：dnyc_sales@163.com

Details Documentation Related

This instrument is based on the transportation industry standards of the People's Republic of China JTG E20-2011《 In the test procedures for asphalt and asphalt mixtures for highway engineering T 0604-2011《 Designed and manufactured as required by the asphalt needle entry test. Suitable for testing of the needle penetration of road petroleum asphalt, modified asphalt, and liquid petroleum asphalt or emulsified asphalt after evaporation. This instrument can also be used for inspection of food raw materials such as solid fine particles, powders, colloids, frozen bodies, as well as cheese, sugar glue, butter, maiqilan, cream, fermented bodies, etc., and can be widely used in the food industry, transportation and highway engineering and other industrial departments.

1. Main technical characteristics
1、The lifting mechanism is designed in novel ways, with rough adjustment and fine adjustment, and easy up and down adjustment.
2、It adopts a novel heating structure design, and the heating and temperature measurement devices can be separated from the constant temperature bathtub for easy operation.
3、It is equipped with an automatic temperature controller and a high-precision temperature sensor, which makes the temperature setting easy and the temperature control accuracy is high.
4、Using novel digital tables, the data is stable, reliable work, and accurate measurement results.

2. Main technical parameters and indicators

1、Measurement range:
2、Resolution
3、Needle-in time control:
4、Heater power:
5、Temperature control accuracy:
6、Temperature control method:
7、Constant temperature bath:
8、Stir:
9、Standard needle:
10、Bracket lifting rack:
11、Working power supply:
12、Dimensions:

（0～600）Needle entry；
0.01㎜；
You can select 5 seconds or 60 seconds respectively, with the time error less than ±0.1Second.
200W；
（25±0.1）℃（Note: The ambient temperature should not be higher than 20 ℃）；
High-precision digital temperature controller；
For hard glass cylinder；
Magnetic stirring beads automatically stir；
（2.5±0.05）g,， conform to GB/T 4509、T 0604 Standard requirements；
Dual lifting and lowering adjustment mechanism for coarse and fine adjustment, easy to align the needle tip with the sample plane；
AC 220V±10％，50Hz；
280mm×350mm×700mm（ long ×Width ×high).

3. Optional accessories (it is recommended that our company be responsible for supporting them)

2、Grinding pounder:
3、Standard test cone:
4、Other test cones:

Expand the cone test applied to grease (or petroleum grease).
102.5±0.05g, Comply with national standards GB/T 269 Requirements.
1/2Cone, 1 /4cone.

Special Note:
Standard configuration JTG E20-2011 Standard, other configurations can be purchased separately according to the requirements of the user when ordering.
