This instrument is based on the standards of the People's Republic of China GB/T4509《 Method for determining the degree of needle inlet of petroleum asphalt, industry standards of the People's Republic of China JTJ052《 In the test procedures for asphalt and asphalt mixtures for highway engineering T0604《 Designed and manufactured as required by the asphalt needle inlet test, it is suitable for testing of asphalt needle inlet under low temperature conditions. This instrument can also be used for the needle inspection of solid fine particles, powders, colloids, frozen materials and other materials, as well as the needle inspection of food raw materials such as cheese, sugar glue, butter, maiqilan, cream, fermented bodies under low temperature conditions, and can be widely used in the food industry, transportation and highway engineering and other industrial departments.

1. Main technical characteristics

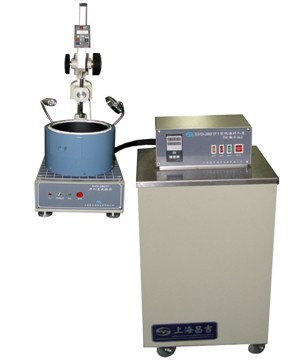

1、This instrument consists of two parts: a digital needle inlet meter and a low temperature constant temperature water bath.

2、The needle inlet meter adopts a digital display, a constant temperature water bath, and a 2-speed needle inlet time control device.

3、A dedicated low-temperature cycling constant temperature water bath provides circulating constant temperature water into a glassware container on the needle inlet instrument working platform to create a preset, constant low-temperature environment required for the test sample.

2. Main technical parameters and indicators

1、Constant temperature water bath parameters

⑴ Power supply: AC220V±10%；50Hz。

⑵ Bath tank capacity: 8.5 L。

⑶ Temperature range: 5.0 ~100.0℃。

⑷ Constant temperature accuracy: ±0.1℃。

⑸ Circulating water volume: 5 L/min。

⑹ Pump head: 1 m。

⑺ Power consumption of the whole machine: not more than 1000 W。

2、Needle inlet meter parameters

⑴ Needle-in time control device: 5 or 60 seconds can be selected respectively, the time error is less than ±0.1Second.

⑵ Needle-in-depth device: It adopts a high-precision digital display, which is convenient, fast and intuitive to use, and can be started at any location.

⑶ Resolution: 0.01 ㎜；

⑷ Needle entry accuracy: ±1Needle entry degree.

⑸ Maximum needle penetration depth: 600 needle penetration degree.

3. Optional accessories (it is recommended that our company be responsible for supporting them)

1、Standard needle: Our company's latest developed products.

2、Grinder: Expand the cone inlet test applied to grease (or petroleum grease).

3、Standard cone: 102.5 ±0.05g, Comply with national standards GB/T269 Specification requirements.

4、Other cones: 1 /2Cone, 1 /4cone.

5、Sample cup: Grease sample cup.
