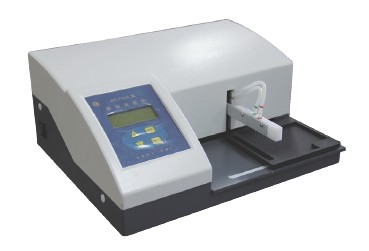

Product number 131-0310

Features and functions

＊It has two-point liquid absorption function
＊Chinese menu operation, large screen LCD display
＊Suitable for various micro-porous plates at home and abroad ( Including flat bottom, round bottom, U Type and V Bottoms, etc. )
＊It has the bottom of the micro-porous plate, and the rinsing function is used to ensure the effect of washing the plate
＊It has five position adjustment functions for cleaning heads
＊It has the function of immersion, which is conducive to reducing interfering adsorption during the reaction process
＊It has the function of fine-tuning cleaning fluid pressure, which can meet the user's special cleaning requirements

Basic parameters

Cleaning head: 8 stitches, 12 stitches
Number of cleaning times: 0 ～255Second-rate
Cleaning number: 1 ～12Row
Soaking time: 0 ～48Hour
Vibrating plate function: Vibrating plate speed 1 ～5Level, vibration plate time 0 ～255Second
Residual volume: average per well ≤1uL

Configuration list

serial number /name /Standard quantity

131-0310/Host /1tower
470-3102/8Needle nozzle /1Only
470-3103/12Needle nozzle /1Only
470-3104/Passing needle /2root
470-3105/bottle /4Only
470-3106/Silicone tube /1set
325-0108/Fuse 1 A/2Only
326-0001/Power cord /1pay
