Instrument functions

●  4.3Inch high resolution color LCD display;
●  Manual automatic dual mode arbitrary switching;
●  Automatic quantitative filling of alkali liquid;
●  Automatic quantitative filling of boric acid absorbing liquid;
●  Add diluents automatically and manually to meet experimental needs;
●  The distillation time can be set at will, and the distillation ends will be automatically alarmed;
●  Automatic rinse control system realizes intelligent rinse of liquid outlet pipelines, making measurement accuracy higher;
●  The intelligent design of the surrounding facilities of the digestive duct includes safety protection design and prompting function of the digestive duct that is not in place;
●  The emergency stop operation function meets the needs of time;
●  Automatic fault detection and intelligent design of sound and light alarm system;
●  The application of flow sensors makes the detection of condensate state more accurate;
●  Real-time monitoring of the heating pipe temperature ensures the safety and reliability of the experimental process.

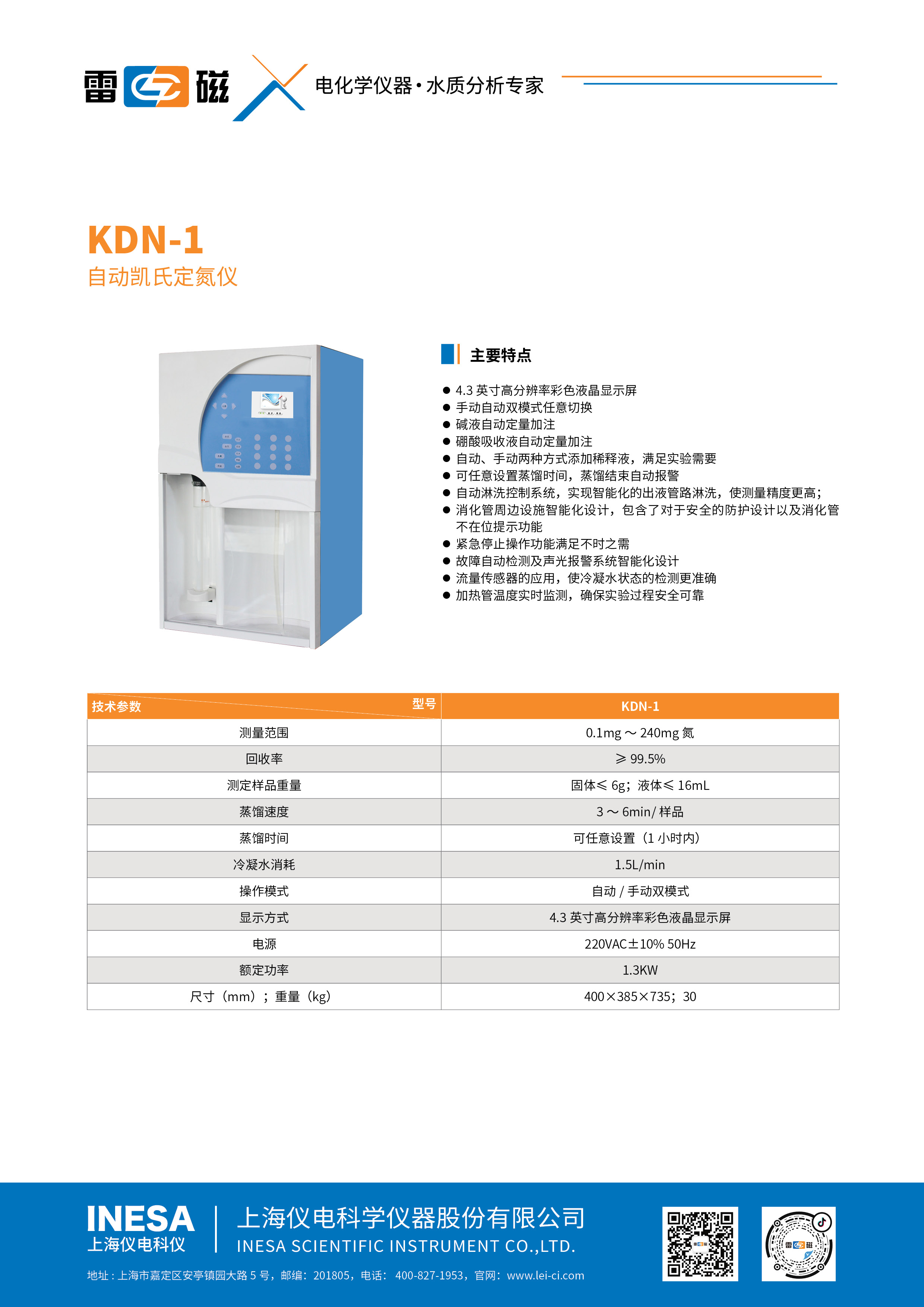

Technical Indicators

1. Measurement range: 0.1 mg～240mg nitrogen
   2. Recovery rate: ≥99.5%
   3. Determine sample weight: solid ≤6g; liquid ≤16mL
   4. Distillation speed: 3 ～6min/sample
   5. Distillation time: can be set at will (within 1 hour)
   6. Condensate water consumption: 1.5 L/min
   7. Operation mode: Automatic /Manual dual mode
   8. Display method: 4.3-inch high-resolution color LCD display
   9. Power supply: 220 VAC ±10% 50Hz
   10.Rated power: 1.3 KW
   11.Dimensions (length ×Width ×High) 400 mm×385mm×735mm

   12.Net weight: 30 Kg
