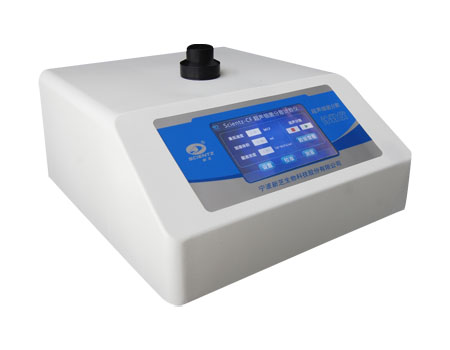

Product Introduction

Ultrasonic bacterial dispersion counter is a bacterial fluid pretreatment instrument based on the principles of ultrasonic dispersion and photoelectric turbidity detection. This instrument can quickly disperse Mycobacterium tuberculosis and other bacteria that are prone to clusters

The turbidity of the bacterial solution is measured simultaneously, and the volume of dilution liquid required to dilute the sample bacterial solution to the target turbidity is given, and the number of colonies per unit volume of the bacterial solution is calculated.

This instrument is a good helper in drug sensitivity testing, drug testing, bacteria sorting, bacterial strain preservation and other fields, and can greatly reduce the labor intensity of manual dispersion and dilution of bacterial fluids.

Improve the efficiency of bacterial fluid treatment, standardize experimental operations, and effectively reduce the risk of microbial contamination.

Technical Specifications

• Net weight of the instrument: 3.4 kg

  Appearance dimensions: L290 W290 H170

  Ultrasonic transducer power: <100W

  Ultrasonic transducer frequency: 20-40 kHz

  Total ultrasound time: 0-999 seconds can be set

  Ultrasonic working time: 0-999 seconds can be set

  Ultrasonic interval time: 0-999 seconds can be set

  Max's turbidity display accuracy: 0.01 MCF

  Max turbidity measurement range: 0.00-6.00 MCF

  Linear range of turbidity detection of McGrathia: 0.20-4.00 MCF

  Sample pool capacity: 1.5-4 ML

  Stepping range: 0.01 ML

  Max Turbidity Calibration: Multi-point calibration, up to 6 points

  Calibration fluid provider: China Institute of Metric Sciences

  Permission management: User and administrator permissions

  Sample dish function: silicone plug prevents leakage

  Dilution function: Automatically generate liquid volume

  Power-off data storage: 50 sets

  Power supply parameters: 220 V/50Hz

  Maximum power consumption of power supply: ≦50W

  Instrument storage temperature conditions: -20 ℃-50℃

  Instrument working temperature conditions: 5-35 ℃
