Quartz Distillation Still
Shanghai Yarong circulating water vacuum pump SHZ-III
Price:¥1800

WeChat

Brand:yarong
Model:SHZ-III
Inventory Status:Spot promotion/please call for consultation
Contact:
Tel:+86 010-51660436
Email:dnyc_sales@163.com
Details Documentation Related

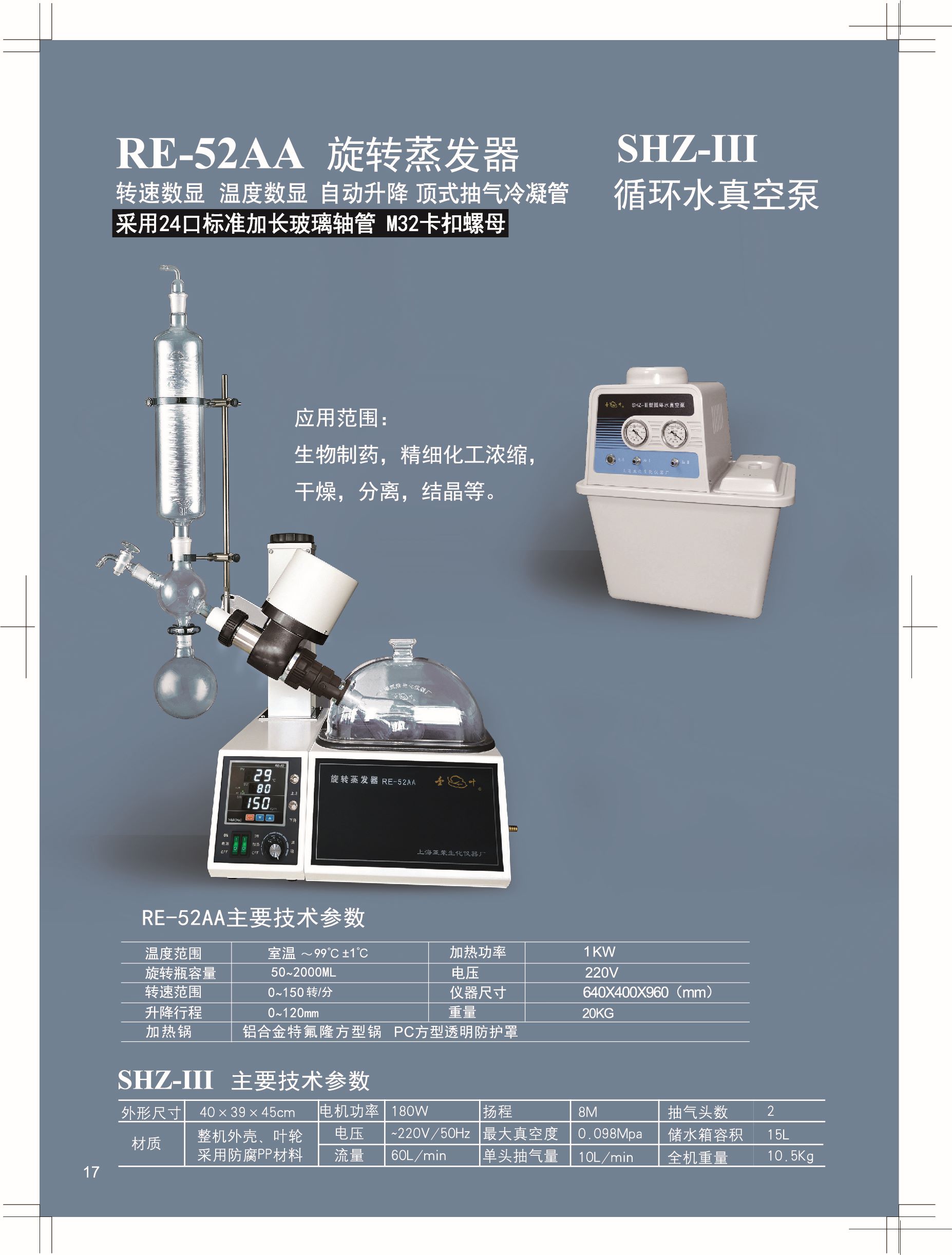

Shanghai Yarong circulating water vacuum pump SHZ-III


Product Description

1、Purpose: This pump uses circulating water as the working fluid and uses fluid jet technology to generate negative pressure to work. It is used as vacuum reflux and vacuum drying. Especially for gases produced by aqueous solutions with higher boiling points, it can also be circulated and pumped normally.

2、This pump is a new type of circulating water vacuum pump that has been redesigned based on foreign prototypes based on small laboratory areas based on the requirements of users over the years. This pump is widely used in biochemistry, medicine, pharmaceuticals, food, environmental protection, colleges, scientific research, laboratories and our factory RE-52 A supporting product for series rotary evaporators.



Product Features

1、This pump has the advantages of no oil use, no pollution, low noise, easy to move, etc.; It adopts a double tap, can be used alone or in parallel, with two vacuum meters installed. The water storage tank and main components are newly developed special anti-corrosion engineering plastics, and the main pipes connected in the machine are made of all stainless steel, which is corrosion-resistant and dissolution-resistant.

2、SHI-IIID Model movement; The pump housing, impeller and the main pipes connected are made of high-quality anti-corrosion stainless steel.


Technical parameters

model

SHZ-IIID

SHZ-III

Voltage power W

180

180

 Voltage v

~220v/50Hz

~220v/50Hz

 flow L/min

60

60

Head M

8

Maximum vacuum Mpa

0.098

 0.098

Single head air extraction volume L/min

10

 10

Water storage tank capacity L

15

15

Number of air pumps

2

Material: Shell

Engineering Plastics

Engineering Plastics

Material: Pump housing impeller

Stainless steel

plastic

Material: Main pipe

Stainless steel

Stainless steel

Appearance size cm

40*39*45

40*39*45

The weight of the whole machine Kg

10.5

10.5
