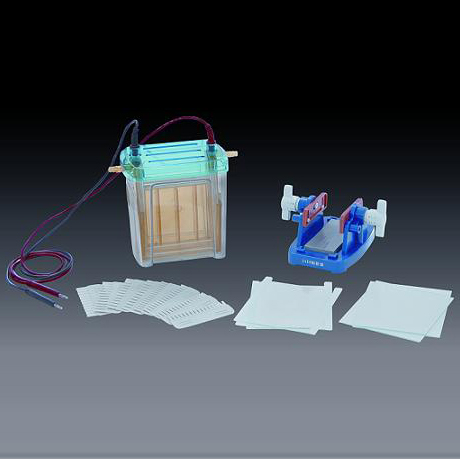

Product number 121-2456

Product usage Used for protein gel electrophoresis and bidirectional electrophoresis second-way

Features

＊High transparency polycarbonate injection molding tank body, durable and easy to observe
＊Polycarbonate injection molding glue making machine with real in-situ glue making function
＊No buffer leakage
＊Avoid bubbles penetrate between the glass plates
＊The bottom of the gel is flush with the glass plate to avoid bubble formation
＊Intact structure, easy operation, meets the needs of gels of different thicknesses
＊Glue making, integrated electrophoresis design, simple and convenient to use； Limit function, accurate operation
＊Double-board adhesive can be made at the same time, with clear strips
＊High flexibility wire, open cover and power outage design to ensure safety
＊The electrode head is replaceable for easy maintenance
＊Cooling circulation device, and WD-9412A The thermostatic circulator is more effective in supporting

Product Specifications

Appearance size ( L × W × H）：210 × 120 × 220mm

Gel board specifications ( L × W）：130 × 100mm

Sample grid: 12, 16 teeth, 1.0, 1.5 mm thick

Weight: 2 kg

Total buffer capacity: 1200 ml
