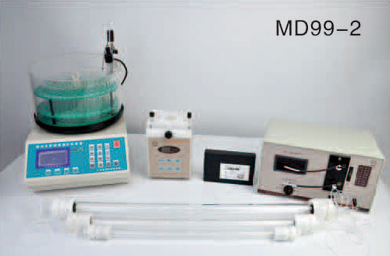

MA99-2A Standard configuration of automatic nucleic acid protein separation chromatometer (seven-piece set):

HD-21-1Nucleic acid protein detector (new LCD screen, Chinese menu)

BT-100Constant flow pump,HD-AComputer workstation

BS-100ACNC meter drop automatic part collector (LCD display, Chinese menu )；

TH-500Gradient Mixer；

Chromatography column: ф1.0×40，ф1.6×50，ф2.6×60One each.

Technical parameters

Wavelength: 254, 280 nm； Optical path: 3 mm；

Range: Six-speed segment； One-click adjustment T， Display simultaneously A value；

Traffic: 0.01-148 ml/min； Applicable YZ15 Pump head, can be equipped with hose 12#,

14#、17#、19#；

Timed collection range: 1 second －199Hours 59 minutes 59 seconds；

Test tube collection capacity: 12 ml*100；Give gradient: 1000 ml；

Self-provided computer to draw tomography； Data analysis, calculation and preservation ；

System requirements: WIN2000/XP/VISTA/WIN7/WIN8 operating system.
