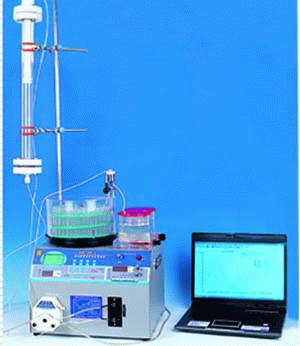

Combination configuration:

UV detector, digital constant current pump,

Computer fully automatic partial collector (LCD display )；

Gradient mixer, HD-A Chromatography workstation；

Chromatography column: ф1.0×40，ф1.6×50，ф2.6×60One each.

Technical parameters:

Wavelength: 220,254,280,340 nm； Optical path: 4 mm； Imported ultraviolet light source；

Range: 0 －100％T，0－2A；

Traffic: 0.01-148 ml/min； Configuration YZ15 Pump head；

Suitable for 12#, 14#, 17#, 19# hoses；

Timed collection range: 1 second －199Hours 59 minutes 59 seconds；

Collecting range of fixed drops: 1 －9999drop；

Collecting range of fixed peaks: 0 －100mv；

Test tube collection capacity: 12 ml×100；

Give gradient: 1000 ml ；

Self-provided computer to draw tomography； Data analysis, calculation and preservation ；

System requirements: WIN2000/XP/VISTA/WIN7/WIN8 operating system.
