Product Description

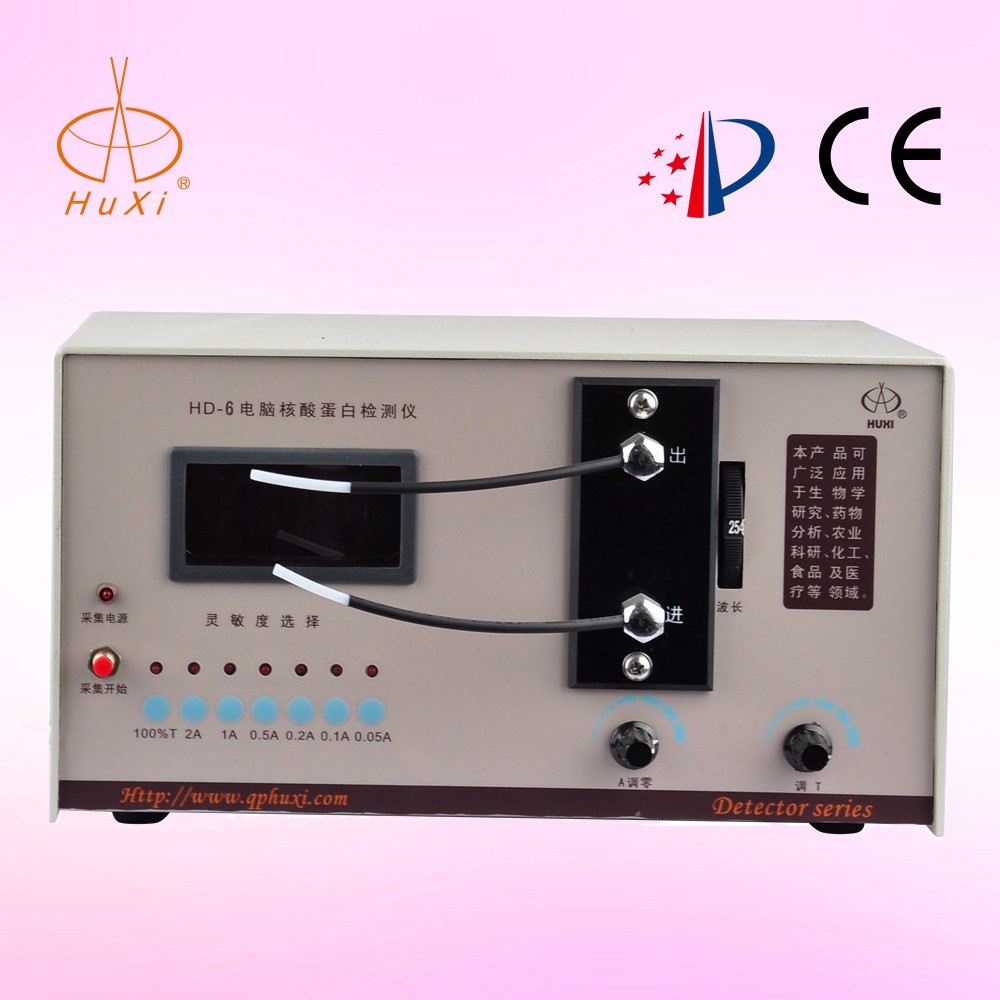

HD-6 High sensitivity ultraviolet detector is an ultraviolet device in liquid chromatography. The instrument is equipped with a chromatography column, a constant flow pump, and some Shanghai West, which form a complete liquid chromatography separation and analysis system.

It is one of the indispensable equipment for modern biological research, drug determination, agricultural research, chemical industry, food and medical units to conduct qualitative and semi-quantitative analysis of samples with ultraviolet absorption.

The main components of this instrument are imported, photomultiplier tube IP28 type, stable performance, high sensitivity, etc.

Product Features

1、This instrument is equipped with output 10 ｍV In addition to the recorder signal, it is also equipped with an output port suitable for the computer integrator, which is very convenient to form a chromatographic workstation system.

2、The digital display of the instrument is designed to be fixed light absorption, A Display computer-friendly and variable-range light absorption ＡTwo optional modes for display recorders are used, which facilitates standardization of readings.

At the same time, high sensitivity readings of variable ranges can also be performed according to scientific research needs, which can facilitate the detection of low-concentration samples.

3、This instrument adopts a new type of import IP28 The photomultiplier tube and improved circuit structure make the instrument work more stable and reliable.

Functional Features
1）Comes with 10 mv Output
2）Select the range with button type
3）The indicator light is on after selecting the range.

4）The front-dial dial is used to adjust the wavelength, so the filters and the filters are not easily damaged.

5）use LED Digital display data.
6）Internal wide voltage design, suitable for complex power supply environments.

Application areas

1）Biological Research

2）Drug Assay

3）Agricultural Research

4）Chemical experiments

5）Food experiments

6）Medical experiments

Technical parameters
