Product Description

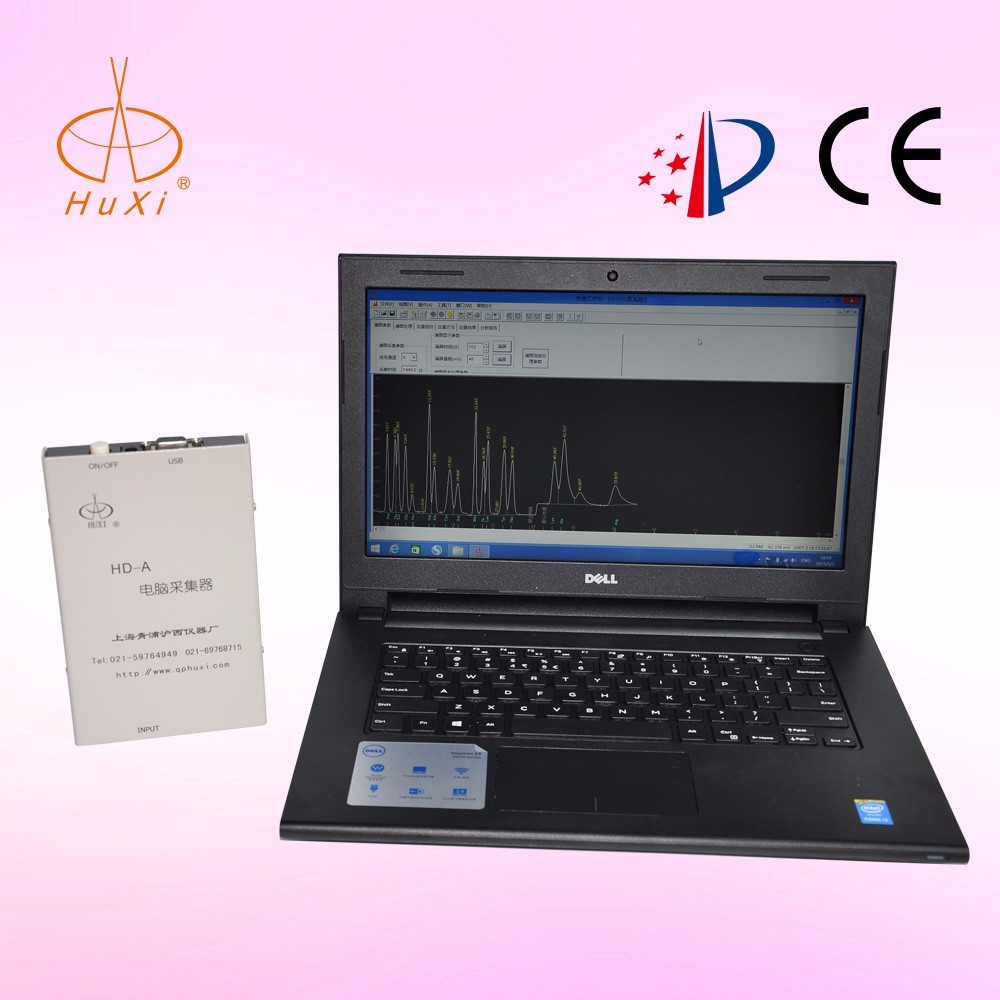

The chromatographic workstation is matched with the chromatometer and is a computer system that processes the signal data of the chromatometer. It expands an ordinary computer from hardware and software

Make it possible to process chromatograph signal data. Hardware refers to a signal acquisition unit, which converts the voltage signal output by the chromatograph into discrete digital signals that the computer can accept.

It acts as a bridge between computers and chromatographs. Software refers to a computer program that receives and processes chromatographic sampled signal data transmitted by hardware and implements quantitative chromatographic calculations.

Technical parameters

Channel: Single channel

enter: －1V~1V

Minimum resolution: 1 uv

Interface: serial port or USB

Can be used with our factory HD Series detectors

Self-configured computers can realize computer drawing

Data analysis, calculation and preservation

System requirements WIN2000/XP/VISTA/WIN7 operating system
