Brief introduction
Fully automatic gel imaging analysis system ZF-268 Effective pixels: 1280 *1024 (130Ten thousand )　Pixel size: 4.65 *4.65 um Number of collected digits: 8 bit Signal-to-noise ratio: 56 dB Imported lens: electric 6x zoom F1.0

Fully automatic gel imaging analysis system ZF-268   Detailed introduction

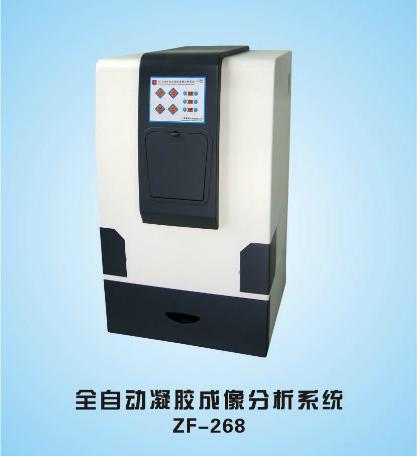

Fully automatic gel imaging analysis system ZF-268
Application scope:
This system integrates a fully automatic gel imaging analysis system integrating intellectual property national patents.
Adopt import professional CCD and analysis software. Imported electric zoom lens. With clear image. Advantages such as ease of operation. Products are obtained from East China University of Science and Technology. Wuhan
University. Wuhan Institute of Virology, Chinese Academy of Sciences. Central China Normal University. Huazhong University of Science and Technology. Fourth Military Medical University. Northwest A&F University. Lanzhou University. South China Agricultural University
Used in laboratories such as academic and Wenzhou Medical College. Become the best choice for scientific research and teaching. Widely used in NDA/ RNA Electrophoretic gel. Protein gel.
Blot hybrid autoradiogenic glue. Enzyme marking. Petri dish. Thin layer tomography and other imaging and image analysis.
Fully automatic gel imaging analysis system ZF-268 Functional Features:
·The software automatically controls the zoom, focal length and aperture of the ultraviolet light source, white light board and imaging system. Can effectively prevent EB Pollution better protect the safety of experimental personnel.
·Pressing keys on the panel can control the zoom, focal length and aperture of the panel ultraviolet lamp and imaging system.
·The system is equipped with automatic protection function and a fully enclosed drawer design. It automatically cuts off the ultraviolet light source by pulling it open, effectively avoiding the damage caused by ultraviolet rays to the human body. Light box design,
It is convenient for glue removal and cleaning, and can also avoid trace contamination between samples.
·Timing function: If the user does not enter any command within 10 minutes, the UV automatically turns off to extend the UV life.
·The unique design of double-door rubber cutting windows on both sides allows users to cut rubber directly in the dark box.
·The observation window design of UV leakage is convenient for users to observe nucleic acid or protein gel directly.
★     Turn off the operating software, and the system automatically turns off the ultraviolet light source.
Fully automatic gel imaging analysis system ZF-268 Main technical indicators:
Product name
Fully automatic gel imaging analysis system ZF-268
Fully automatic gel imaging analysis system ZF-288
CCD
1331280 pixels (H)×1024(V)
1401360 pixels (H)×1024(V)
Number of bits collected
10bit
12bit
Lens
Imported electric zoom lens, 6x optical zoom, 8-48 mm
aperture
F1:1.2 automatic
Detection sensitivity
Less than 20 Pg through EB Stained double strands DNA
Exposure time
0—2000millisecond
Detect signal-to-noise ratio
≥56bB
Glue cutting observation device
Observation window 60 ×125mm， Glue cutting window 100 ×125mm
Color filter
Professional 590 nm Interference color filter, close-up mirror
3Position pull filter
Sample loading table area
220×270mm， Reflection on both sides 200 ×50mm
wavelength
Drawer UV light box 300 nm， 254, 365 on both sides nm
White light conversion board
Suitable for white light imaging, white light plate area 210 ×260mm
interface
USB2.0 Easy to install and faster data transmission
Shutter control
Electronic shutter
software
Imported gel analysis software (Chinese, English version)
ID Analysis software (optional 2 D Analysis software)
Install
Free installation and debugging training
Fully automatic gel imaging analysis system ZF-268 Instrument composition
Fully automatic gel imaging analysis system
Fully enclosed UV concealer
Highly sensitive electric zoom lens
Multifunctional analysis software, close the operating software, the system automatically shuts down

Timing device, automatic UV off for ten minutes to extend UV lamp life
