Brief introduction
Fully automatic gel imaging analysis system ZF-368 Integrity CCD 133 10,000 effective pixel resolution low illumination camera exposure time 0-700 milliseconds Super pixel resolution 1280 (high) ×1040（Wide) Interface Standard C interface

Fully automatic gel imaging analysis system ZF-368   Detailed introduction

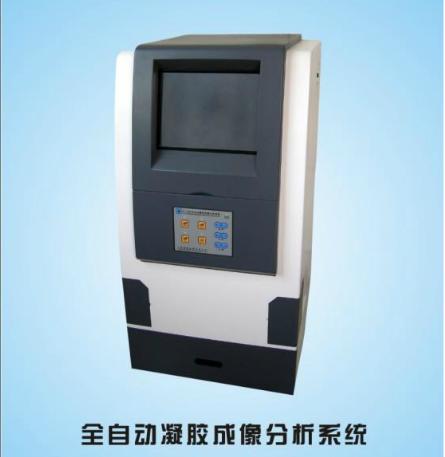

Fully automatic gel imaging analysis system ZF-368
Application scope:
Computer-automatic gel imaging analysis system is the earliest in China to integrate computers and other hardware systems entirely by ultraviolet concealers. It is a new and upgraded integrated design
Gel imaging, built-in touch screen computer, provides a novel full-process computer software to control, zoom, focus, aperture, ultraviolet light source, image analysis, image shooting,
Data analysis, fully automatic control. No external computer is required to meet the needs of different samples and experiments, and quickly obtain gel analysis, which is widely used in molecular biology
Computer gel analysis work in related scientific research departments and production units such as genetic diagnosis, forensic evidence, microbiology, genetics, epidemiology, agricultural research, etc.
Few instruments.
Fully automatic gel imaging analysis system ZF-368 Functional Features:
·The software automatically controls the zoom, focal length and aperture of the ultraviolet light source, white light board and imaging system. Can effectively prevent EB Pollution better protect the safety of experimental personnel.
·Pressing keys on the panel can control the zoom, focal length and aperture of the panel ultraviolet lamp and imaging system.
·The system is equipped with automatic protection function and a fully enclosed drawer design. It automatically cuts off the ultraviolet light source by pulling it open, effectively avoiding the damage caused by ultraviolet rays to the human body. Light box design,
It is convenient for glue removal and cleaning, and can also avoid trace contamination between samples.
·Timing function: If the user does not enter any command within 10 minutes, the UV automatically turns off to extend the UV life.
·The unique design of double-door rubber cutting windows on both sides allows users to cut rubber directly in the dark box.
·The observation window design of UV leakage is convenient for users to observe nucleic acid or protein gel directly.
★     Turn off the operating software and the system will automatically turn off the ultraviolet light source at the same time.
Fully automatic gel imaging analysis system ZF-368 Main technical indicators:
CCD
1331280 pixels (H)×1024(V)
Imported lenses
Imported electric zoom lens, 6x optical zoom, 8-48 mm
aperture
F1:1.2 automatic
computer
Built-in 10-inch touch screen computer
Number of bits collected
10bit （256 Grayscale)
Detection sensitivity
Less than 20 Pg through EB Stained double strands DNA
Exposure time
0—2000millisecond
Detect signal-to-noise ratio
≥56bB
Color filter
Professional 590 nm Interference color filter
Shutter control
Electronic shutter
Sample loading table area
220×270mm， Reflection on both sides 200 ×50mm
wavelength
Light box wavelength 300 nm， UV 254.365 on both sides nm， White light on both sides
White light conversion board
Suitable for protein gel imaging, white light plate area 210 ×260mm
interface
USB2.0 Easy to install and faster data transmission
software
Imported gel analysis software (Chinese, English version)       ID Analysis software (optional 2 D Analysis software)
Install
Free installation and debugging training
Selection
Inkjet printer, independent card printing, direct editing, cutting and printing experimental data photos
