Fully automatic gel imaging analysis system independently developed and produced by Shanghai Jiapeng Technology Co., Ltd. ZF-388 System hardware configuration using high-tech means: high resolution, high quality, high definition CCD The camera is fully automatic computer control, highly programmable, and the digital camera can realize photography and imaging control by connecting with the computer. The analysis software can realize image editing processing, automatic lane recognition, molecular weight calculation, sample loading distribution calculation, etc. Guaranteed recording DNA/RNA Gel, protein gel, blot hybrid membrane (include Western、Southern、Northern、Slot/Point hybrid membrane )、The sensitivity of images such as autoradiodevelopment film, enzyme marker plate, thin-layer chromatography plate, chemical fluorescence development and other images at low illumination without losing the band, and finally the peak, molecular weight or base log, area, height, position, volume or total sample volume of the gel band can be obtained. Maximum control EB Pollution effectively protects the health of experimental operators. It helps researchers to obtain electrophoretic photos and analysis results safely, correctly and quickly, get rid of tedious operation processes, and improve work efficiency.

     Fully automatic gel imaging systemZF-388 Available for DNA/RNA Gel, protein gel, blot hybrid membrane (include Western、Southern、Northern、Solt、 Point hybrid membrane )、Imaging and analysis of images such as autoradiodevelopment films, enzyme markers, thin-layer chromatography plates, etc. can accurately analyze bands, spots and any other target areas, molecular weight analysis, clustering analysis, homology analysis, etc.

 Fully automatic gel imaging systemZF-388 Main application scope:

Nucleic acid detection: various fluorescent dyes, such as Ethidium bromide，SYBRTMGold，SYBRTMGreen，SYBRTMSafe，GelStarTM，Fluorescein，Texas Red Tagged DNA/RNA Test. Protein detection: Coomassie bright blue glue, silver-burning glue, and fluorescent dyes such as SyproTMRed,SyproTMOrange,Pro-Q Diamond,DeepPurple Marking glue /membrane /Chips, etc. Other applications: various hybrid membranes, western transfer membranes, petri dish colony counting, enzyme labeling plates, TLC Boards, etc.

 Fully automatic gel imaging systemZF-388 Functional Features:

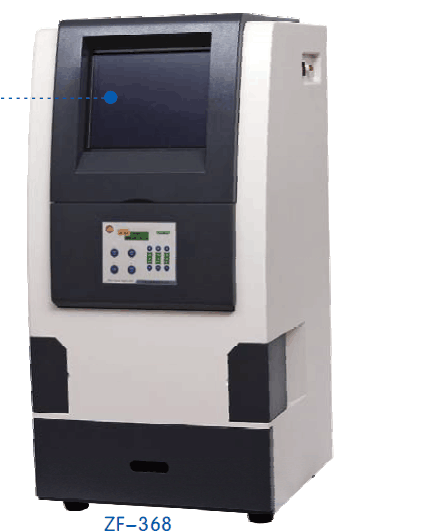

All-in-one design, built-in computer, 10.4 inches LCD Computer touch screen

Built-in 10.4-inch computer touch screen, directly observe, process and save gel images in real time；

Fully automatic control of transmitting ultraviolet lamps and reflector lamps can be performed through the chassis panel, and zoom, focus, aperture, etc. can be manually adjusted.；

Research level CCD  High-definition, high-quality images reflect more details of the picture and have stronger ability to analyze weak bands

Can be protected from UV via software or UV ( UV） Observation window, real-time observation of sample conditions, more intuitive and safer；

Timing protection function: no command is entered within 10 minutes, all light sources are automatically turned off, extending service life

Turn off the operating software: The system automatically turns off all light sources at the same time, making the experiment safer and more efficient

The closed concealed box design provides good conditions for chemiluminescence and bioluminescence

The unique design of double door tape cutting window on both sides: the user cuts glue directly in the dark box to effectively prevent EB pollute

Drawer light box double air cooling and closure design: open the drawer and automatically cut off the UV light source to avoid UV damage

Image functions: adjust image size, brightness, grayscale, contrast, angle, strip calibration, invert color, crop, rotation, zoom, add text

The analysis software and image acquisition software are integrated: image shooting, analysis of electrophoretic gels, spot blotting, narrow line blotting and colony counting are completed at the same interface.

Strip horizontality and verticality adjustable: The horizontality and verticality of the strip can be manually adjusted to obtain more accurate data.

Fully automatic gel imaging analysis system ZF-388 Technical indicators and parameters: Patent number: 2008 3 0130298.3

Fully automatic gel imaging analysis system ZF-388CCD Photosensitive chips United States Microvision chip
