Chemiluminescence imaging is a plug-and-play all-in-one machine, suitable for chemiluminescence, multi-color fluorescence detection and ordinary gel detection, and uses high-resolution low-illumination imported refrigeration CCD， It is perfectly combined with a large aperture electric lens to capture extremely weak fluorescence and chemiluminescence signals. Deeply refrigerated CCD， Eliminate background noise to the greatest extent, and the electric lens with a large aperture is collected to collect weak signals. Various optional fluorescent light sources and multi-position electric filter wheels to meet nucleic acid imaging, ECL Various experimental needs such as imaging.

Application range: Chemiluminescence detection: Western Lightning、ECL、ECLplus、CDP Star、SuperSignal、CSPD、LumiGlo Isolated luminescent substrate. Functional Features: F/0.95,The hardware configuration of high-definition large-diameter high-transparency fixed-focus lens and high-sensitivity digital refrigeration camera can be used to real-time observation of chemiluminescence images through the computer； The number of continuous sampling times, starting and ending exposure time can be set, and dynamic continuous shooting can be performed to facilitate the best conditions and effects experimental results. ； Technical indicators and parameters:

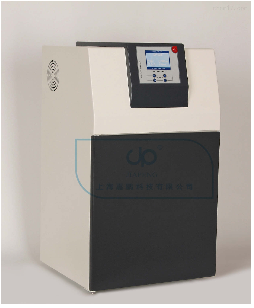

Chemiluminescence imaging ZF-670

CCD Photosensitive chip: Kodak 4 /3'' CCD chip

Camera: Kodak high resolution low-illumination digital refrigeration camera

Cooling method: semiconductor refrigeration

Cooling temperature: below ambient temperature 75 ℃（Absolute temperature-45 ℃，Dynamic real-time display CCD Refrigeration temperature)

Detect signal-to-noise ratio: ≥56dB

Effective pixels: 3448 (H)×2574（V)

Resolution: 8.9 megapixels

Image size: 5.4 um×5.4um

Number of collected digits: 16 bit

Lens: F/0.95,High-definition, large-diameter, high-transparency macro fixed-focus lens without adjustment

Zoom: Standard drawer-type double-position loading focus platform, compatible with shooting sample thickness 0.01 mm—10cm

Dynamic range: ﹥4.5Orders of magnitude

Detection sensitivity: less than 20 Pg through EB Stained double strands DNA

Lighting mode: transmit ultraviolet, transmit white light, reflect white light, (optional transmit blue light)

Excitation light source: Transmission: 300 nm， White light, (optional transmittance 200 x120mm）

Bilateral reflection: reflecting white light (cold light) ( R Type: 254 nm,365nm UV reflection 200 ×50mm）

Filter position: 5-position computer-controlled automatic positioning filter wheel

Fluorescence light source (Selection ) ：365nm, 395nm, 460nm, 490nm, 530nm, 630nm

Filters (Standard ) ：590nm

Filters (Selection ) ：460nm, 530nm, 630nm, 670nm

Shooting area: UV: 200 ×250mm White light: 210 ×260mm

Software: U.S. imported gel analysis software (Chinese, English version optional) 1 D Analysis software (optional 2 D Analysis software)

Installation: Free installation and debugging training

Configuration: Professional glue cutting tools are included

interface: USB2.0， Images can be stored and printed directly

XP/Win7 The system is compatible.
