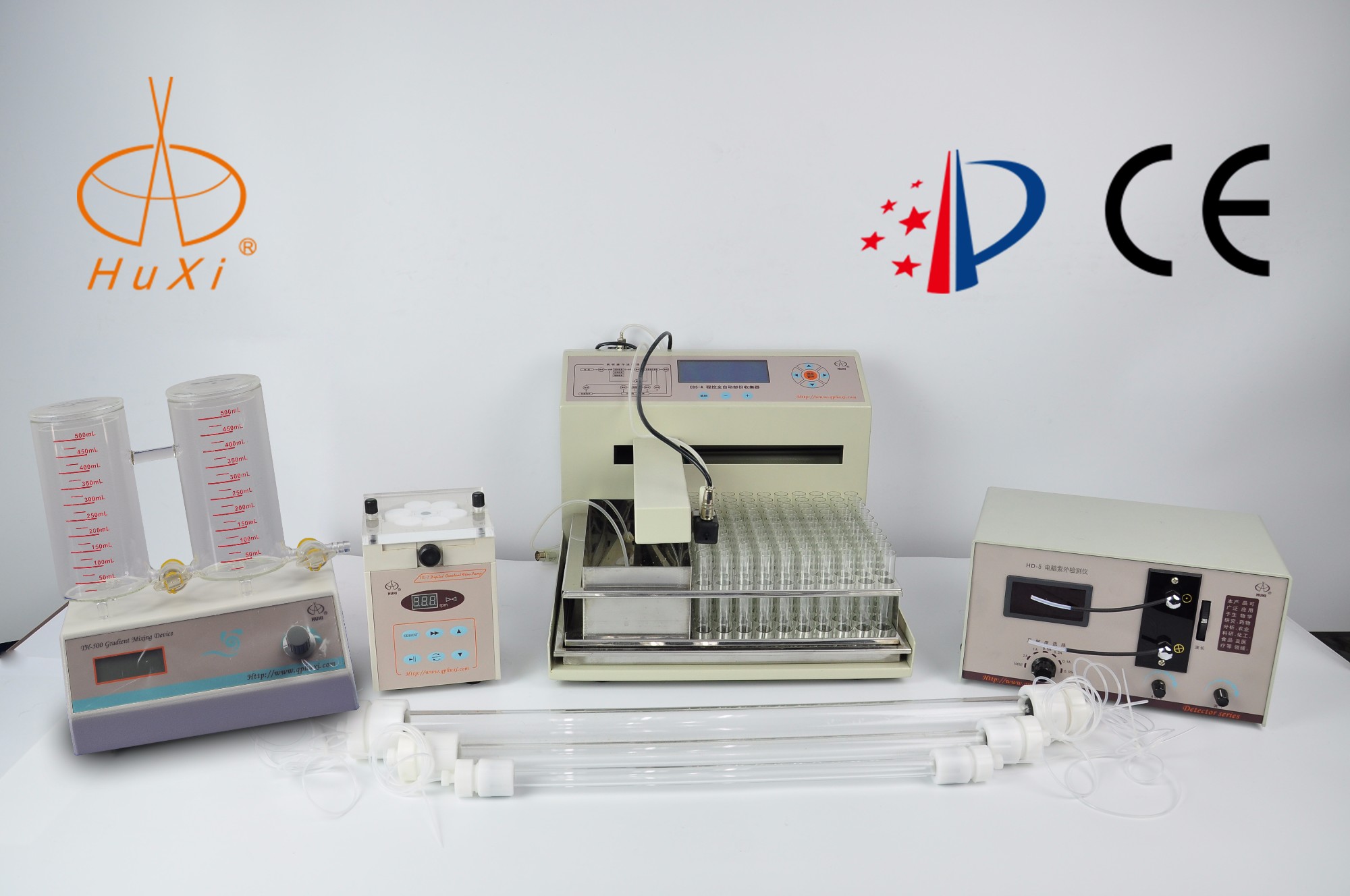

MF99-1 Normal type (seven-piece set):

HD-5Computer UV detector (new LCD screen, Chinese menu, built-in chromatography workstation),HL-2Constant flow pump；

CBS-AProgrammable fully automatic partial collector；

TH-500Gradient Mixer；

Assembling a desktop computer；

Chromatography column rack；

Chromatography column: ф1.0×40，ф1.6×50，ф2.6×60One each.

Technical parameters:

Wavelength: 220,254,280,340 nm， Optical path: 4 mm； Imported ultraviolet light source；

Range: Six-speed segmentation； One-click adjustment T, Display simultaneously A value； Built-in chromatography workstation ；

Traffic: 0.01-10 ml/min； Give gradient: 1000 ml；

Timing range: 1 second －999Hours 59 minutes 59 seconds；

Collecting range of fixed drops: 1-9999 drops； Programmable collection range: 1-10 segments ；

Move method: X-Y Moving, programmable control (with waste liquid tank)；

Test tube collection capacity: can be optional (5 ml/12ml/50ml/100ml/External connection

Unlimited containers)； Computer configuration: assemble desktop computer (standard) ；

Install software to draw a tomography map on your computer； Data analysis, calculation and storage ；
