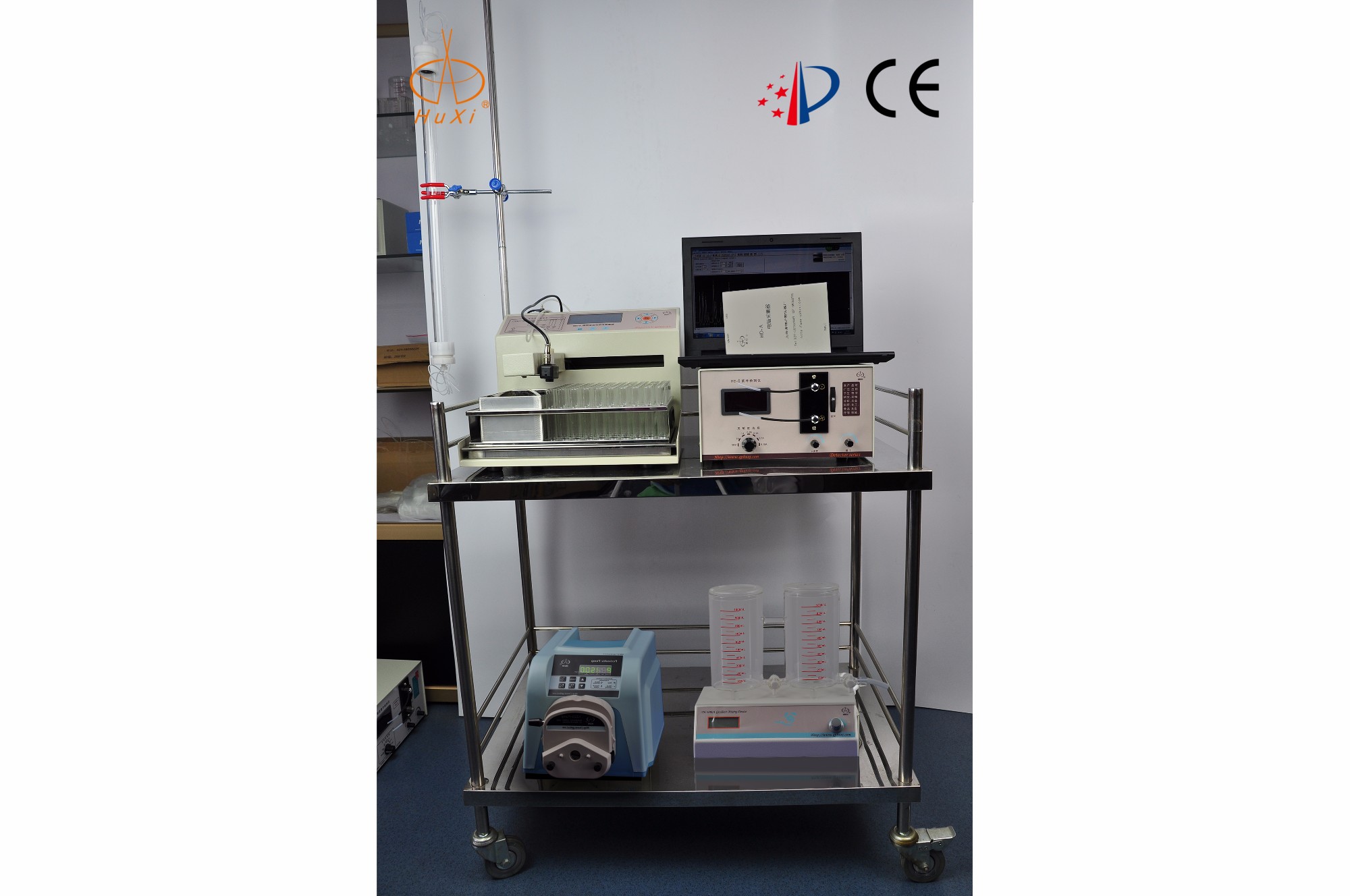

MF99-4 Deluxe (eight-piece set):

HD-6High sensitivity ultraviolet detector (new LCD screen, Chinese menu)；

BT-100SDConstant flow pump；

CBS-BProgrammable fully automatic partial collector；

TH-1000AGradient Mixer；

Instrument car；

HD-AChromatography workstation；

Brand laptop computer；

Chromatography column: ф1.0×40，ф1.6×50，ф2.6×60One each.

Technical parameters:

Wavelength: 214, 254 nm（ Standard)； Imported ultraviolet light source, optional

214-380nm wavelength； Optical range: 10 mm； Sample pool: 100 ul； Range: Six gears

Segmentation； One-click adjustment T， Display simultaneously A value； Flow rate: 10 ml/min；

Minimum detection volume: 50 ug/ml； Stabilization time: ﹤20min；

Baseline drift: ≤±1.0×10ˉ3Au/h； Give gradient: 2000 ml；

Traffic: 0.15-324 ml/min； Applicable YZ25 Pump head,

Can be equipped with hoses: 18#, 20#, 22#, 25#； Timing range: 1 second －999Hour

59Minutes 59 seconds； Collecting range of fixed drops: 1-9999 drops ；

Programmable collection range: 1-10 segments； Collecting range of fixed peaks: 0-2000 mv；

Move method: X-Y Moving, programmable control (with waste liquid tank)；

Test tube collection capacity: can be optional (5 ml/12ml/50ml/100ml External container

Unlimited quantity)； Computer configuration: Brand desktop computer (standard)

Install software to draw a tomography map on your computer； Data analysis, calculation and storage ；
